Ürün arama
Açıklama

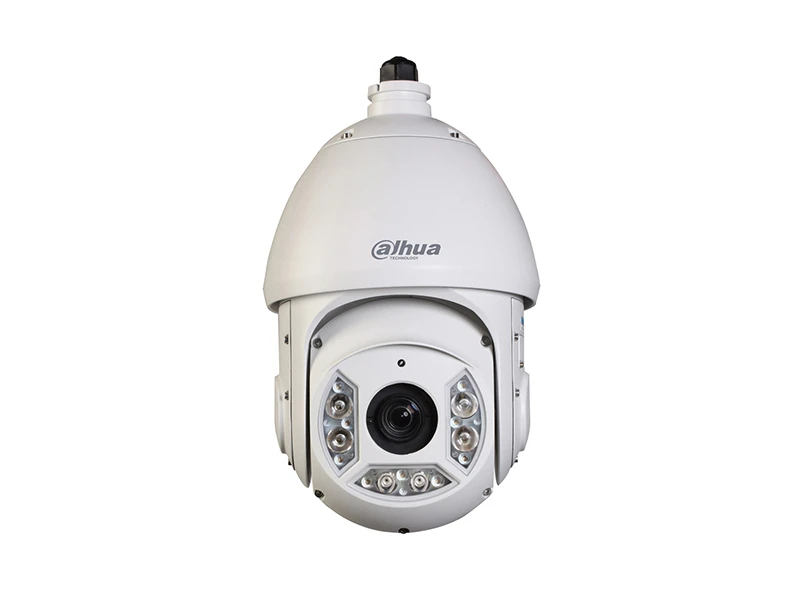

Dahua DH SD6C120S HN IP HD Speed Dome Kamera
Özellikler
- 20x optical zoom
- H.264 & MJPEG dual-stream encoding
- Max. 25/30fps @ 1.3M(1280960) & 720P resolution
- DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- Max 300°/s pan speed, 360° endless pan rotation
- Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
- Built-in 2/1 alarm in/out
- Support intelligent 3D positioning with DH-SD protocol
- Micro SD memory, IP66
- IR Distance up to 100m
Teknik Özellikler
| Camera | ||
| Image Sensor | 1/3” Exmor CMOS | |
| Effective Pixels | 1280(H) x 960(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05Lux @ F1.4; B/W: 0.005Lux @ F1.4 | |
| S/N Ratio | More than 50dB | |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | Ultra DNR (2D/3D) | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 4.7mm~94mm(20x Optical zoom) | |
| Max Aperture | F1.4 ~ F2.6 | |
| Focus Control | Auto / Manual | |
| Angle of View | H: 55° ~ 3.2° | |
| Close Focus Distance | 100mm~ 1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s | |
| Preset Speed | Pan: 300° /s; Tilt: 300° /s | |
| Preset | 80(DH-SD), 255(Pelco-P/D) | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
| IR Distance | 100m (2 near IR LED+ 4 far IR LED) | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 1.3M(1280×960) / 720P(1280×720) / D1(704×576/ 704×480) /CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 1.3M/720P(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps | |
| Audio | ||
| Compression | G.711a / G.711u(32kbps)/ PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, | |
| ONVIF | ONVIF Profile S | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 64GB | |
| RS485 | 1 | |
| Alarm | 2/1 channel In/Out | |
| General | ||
| Power Supply | AC 24V/2.2A (±10%) | |
| Power Consumption | 10.5W, 26W (IR on, Heater on) | |
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH | |
| Ingress Protection | IP66 | |
| Dimensions | Φ204.7(mm) x 359.9(mm) | |
| Weight | 7.8kg | |
Teknik Kısa
Irled : Var
Depolama : Var
Çözünürlük : 1.3MP
