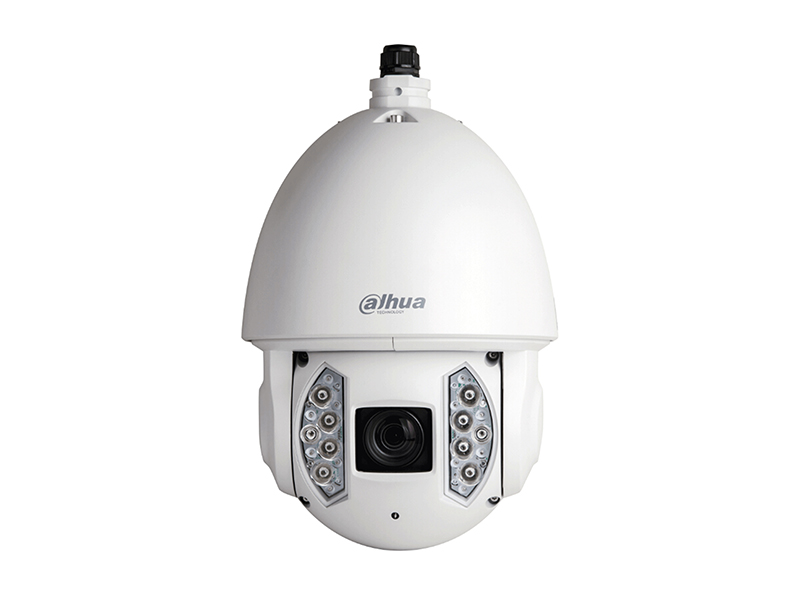

Dahua SD6AE530U HNI IR PTZ IP Kamera

Özellikler

1/1.9" 6Megapixel STARVIS™ CMOS
Powerful 30x optical zoom
H.265 Encoding
Maxsimum 25/30fps@5M/3M, 25/30/50/60fps@1080P
Auto-tracking and IVS
Support Hi-PoE
IR distance up to 200m
IP67, IK10

Teknik Özellikler

Camera
Image Sensor	1/1.9” STARVIS™ CMOS
Effective Pixels	2560(H) x 1920(V), 5 Megapixels
RAM/ROM	1024M/128M
Scanning System	Progressive
Electronic Shutter Speed	1/1s-1/30,000s
Minimum Illumination	Color: 0.05Lux@F1.6;B/W: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio	More than 55dB
IR Distance	Distance up to 200m (656ft)
IR On/Off Control	Auto/Manual
IR LEDs	10
Lens
Focal Length	6mm-180mm
Max. Aperture	F1.5 - F4.3
Angle of View	H: 61.2° - 2.1°
Optical Zoom	30x
Focus Control	Auto/Manual
Close Focus Distance	100mm- 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect	Observe	Recognize	Identify
2250m(7832ft)	900m(2953ft)	450m(1476ft)	225m(738ft)
PTZ
Pan/Tilt Range	Pan: 0° - 360° endless; Tilt: -20° - 90°,auto flip 180°
Manual Control Speed	Pan: 0.1° -200° /s; Tilt: 0.1° -120° /s
Preset Speed	Pan: 240° /s; Tilt: 200° /s
Presets	300
PTZ Mode	5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup	Human-oriented focal Length/ speed adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol	DH-SD, Pelco-P/D (Auto recognition)
Intelligence
Event Trigger	Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
Auto Tracking	Support
IVS	Tripwire, Intrusion, Abandoned/Missing
Advanced Intelligent Functions	Face Detection, Heat Map
Video
Compression	H.265 / H.264
Streaming Capability	3 Streams
Resolution	5M(2560×1920)/3M(2048×1536)/1080P (1920×1080)/1.3M(1280×960)/720P(1280×720) /D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate	Main stream: 5M/3M(1-25/30fps), 1080P/1.3M/720P(1-50/60fps) Sub stream1: D1/CIF(1 - 25/30fps) Sub stream2: 5M/1080P/1.3M/720P/D1/CIF (1-25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.265/H.264: 448K ~ 8192Kbps
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto / Manual
Noise Reduction	Ultra DNR (2D/3D)
Motion Detection	Support
Region of Interest	Support
Electronic Image Stabilization (EIS)	Support
Defog	Support
Digital Zoom	16x
Flip	180°
Privacy Masking	Up to 24 areas
Audio
Compression	G.711a/G.711Mu/AAC/G.722/ G.726/MPEG2-L2
Network
Ethernet	RJ-45 (10Base-T/100Base-TX)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability	ONVIF Profile S&G, API
Streaming Method	Unicast / Multicast
Max. User Access	20 users
Edge Storage	NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, DMSS
Smart Phone	IOS, Android
Certifications
Certifications	CE: EN55032/EN55024/EN50130-4
	FCC: Part15 subpartB,ANSI C63.4- 2014
	UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Electrical
Video Interface	1 port(BNC, 1.0V[p-p], 75Ω)
RS485	1
Audio I/O	1/1
Alarm I/O	7/2
Electrical
Power Supply	AC24V/3A(±25%), Hi-PoE
Power Consumption	24W, 38W (IR on)
Environmental
Operating Conditions	-40°C - 70°C (-40°F - +158°F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal
Dimensions	Φ240(mm) x 382 (mm)
Net Weight	6.75kg(14.88lb)
Gross Weight	10.1kg(22.27lb)
