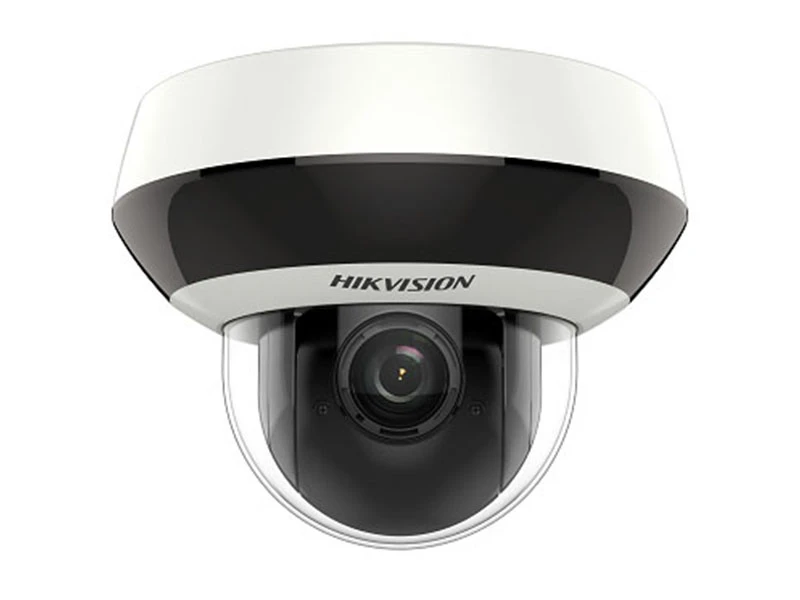

Hikvision DS 2DE2A404W DE3 IP Speed Dome Kamera

Özellikler

1/3" progressive scan CMOS
Up to 2560 × 1440@25fps resolution
Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
4× optical zoom, 16× digital zoom
120 dB WDR, 3D DNR, HLC, EIS, Regional Exposure, Regional Focus
12 VDC & PoE
IK10, IP66
Support H.265+/H.265 video compression

Teknik Özellikler

Camera
Image Sensor	1/3" progressive scan CMOS
Effective Pixels	2560(H)×1440(V)
Signal System	PAL/NTSC
Minimum Illumination	Color: 0.005 Lux @(F1.6, AGC ON)
Minimum Illumination	B/W: 0.001 Lux @(F1.6, AGC ON)
White Balance	Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC	Auto/Manual
HLC	Support
WDR	120dB
Shutter Time	50Hz: 1/1 s to 1/30,000 s
Shutter Time	60Hz: 1/1 s to 1/30,000 s
Day& Night	ICR
Digital Zoom	16×
Privacy Masking	24 privacy masks programmable
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	2.8 to 12mm, 4× optical zoom
Zoom Speed	Approx. 2s (optical lens, wide-tele)
Angle of View	Horizontal field of view: 100° to 33° (Wide-Tele)
	Vertical field of view: 53° to 18° (Wide-Tele)
	Diagonal field of view: 119° to 37.5° (Wide-Tele)
Minimum Working Distance	10 to 1500mm (wide-tele)
Aperture Range	F1.6 to F2.7
Pan & Tilt
Pan Range	° to 330°
Pan Speed	Configurable, from 0.1°/s to 100°/s,
Pan Speed	Preset speed: 100°/s
Tilt Range	Tilt: 0°~90°
Tilt Speed	Configurable, from 0.1°/s to 100°/s
Tilt Speed	Preset Speed: 100°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Power-off Memory	Support
Input & Output
Audio Input	1-ch audio input
Audio Output	1-ch audio output
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution	2560 × 1440
Main Stream	50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 24fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream	50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream	50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264/MJPEG
	Third Stream: H.265/H.264/MJPEG
ROI encoding	Support 2 areas with adjustable levels
Audio Compression	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode	OFF/Audio input/Audio output
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users	Up to 20 users
Three-Stream	Support
Mini SD Card	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
User/Host Level	Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures	User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Hik-Connect	Support
General
Power Supply	12 VDC & PoE
Power Consumption	Max.: 8 W
Working Temperature/Humidity	-20°C to 60°C (-4°F to 140°F)
Protection Level	IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material	Aluminum alloy, PC, PC+ABS
Dimensions	Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
Weight (approx.)	Approx. 0.53 kg (1.17 lb)
