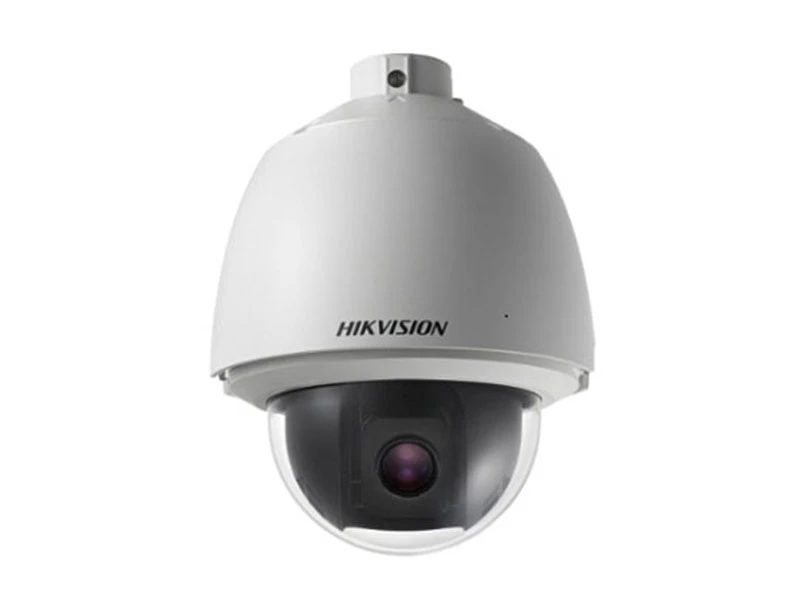

Hikvision DS 2DE5186 IP Speed Dome Kamera

Özellikler

1/2.8’’ Progressive Scan CMOS, up to 1920x1080
25 fps at HD1080p
3D DNR, D WDR
3D intelligent positioning
30X Optical Zoom
IP66 rating

Teknik Özellikler

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Effective Pixels	1920(H)x1080(V)
Signal System	PAL/NTSC
Minimum Illumination	Color : 0.05 lux (F1.6, 1/30 sec, 50 IRE, AGC On)
	B/W : 0.01 lux (F1.6, 1/30 sec, 50 IRE, AGC On)
	Color : 0.02 lux (F1.6, 1/1 sec, 50 IRE, AGC On)
	B/W : 0.002 lux (F1.6, 1/1 sec, 50 IRE, AGC On)
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
Smart defog	Support
WDR	Support
Shutter Time	1-1/10,000s
Day& Night	ICR
Digital Zoom	16X
Privacy Masking	2 privacy masks programmable
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	4.3-129mm, 30x
Zoom Speed	Approx.3s(Optical Wide-Tele)
Angle of View	65.1-2.34 degree (Wide-Tele)
Minimum Working Distance	10-1500mm(Wide-Tele)
Aperture Range	F1.6-F5.0
Pan & Tilt
Pan Range	360°endless
Pan Speed	Pan Manual Speed: 0.1° -250°/s,
Pan Speed	Pan Preset Speed: 300°/s
Tilt Range	-5°~90° (Auto Flip )
Tilt Speed	Tilt Manual Speed: 0.1°-150°/s,
Tilt Speed	Tilt Preset Speed: 200°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Patrol	8 patrols, up to 32 presets per patrol
Power loss recovery	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display	ON/OFF
Freeze Frame	Support
Alarm
Alarm Input	2
Alarm Output	1
Alarm Actions	Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage
Input & Output
Audio Input	1 Mic in/Line in interface
Audio Input	Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output	1 Audio output interface
Audio Output	Line level, impedance: 600Ω
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution	1920×1080
Frame Rate	50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720)
Frame Rate	60Hz: 30 fps (1920×1080), 30 fps (1280×960) , 30 fps (1280×720)
Image Compression	H.264 / MJPEG
ROI encoding	Support 2 areas with adjustable levels
Audio Compression	G.711ulaw/G.711alaw/G.726/MP2L2
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users	Up to 20 users
Dual Stream	Support
Mini SD Card	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures	User authentication (ID and PW), host authentication (MAC address)
EZVIZ	Support
Client GUI
Camera Control	Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display	Time: Week: Date, 6 formats on the Client
Client	Support iVMS-4200
Web Browser	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
General
Menu Language	English / Chinese
Power Supply	24 VAC(-A model); 24 VAC/PoE+(-AE model)
Power Consumption	Max. 18W
Working Temperature/Humidity	-30 ℃-65℃(-22℉-149℉)(outdoor dome) / -10℃-50℃(14℉-122℉)(indoor dome )
Working Temperature/Humidity	90% or less
Protection Level	IP66 standard (outdoor), TVS 3,000V lightning protection, surge protection and voltage transient protection
Mounting	Various mounting modes optional
Dimensions	Φ220×305mm (Φ8.66”×12.02”)(Outdoor)
	Φ183.4×243mm(Φ7.22”×9.56”) (Indoor ceiling)
	Φ245×236mm(Φ9.65”×9.29”) (Indoor in-ceiling)
Weight (approx.)	3Kg (6.61Ibs)
Mount Option	Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
