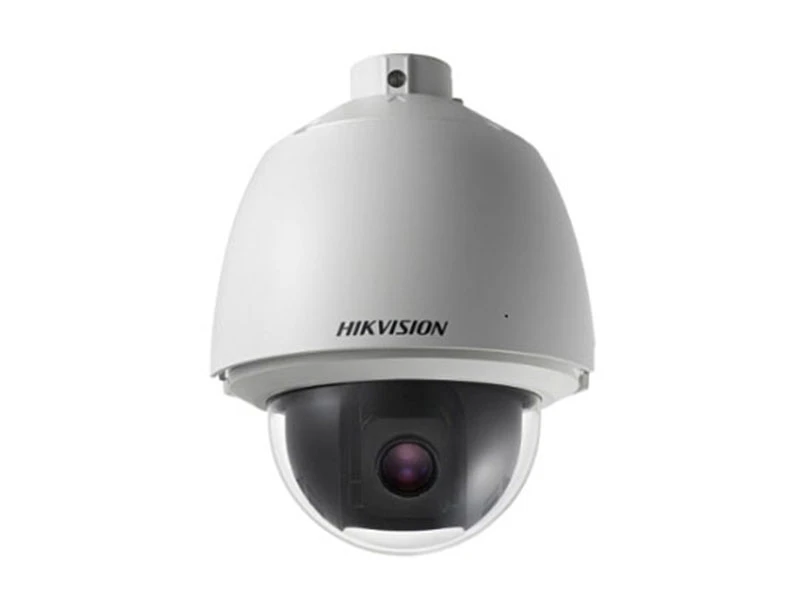

Hikvision DS 2DE5232W AE IP Speed Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Minimum Illumination | Ultra-low light: Color: 0.005 Lux @(F1.6, AGC ON) |
| B/W: 0.001 Lux @(F1.6, AGC ON) | |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| Smart defog | Support |
| WDR | 120dB |
| Shutter Time | 1/1 s to 1/30,000 s |
| Day& Night | ICR |
| Digital Zoom | 16X |
| Privacy Masking | 24 programmable privacy masks |
| Auto Focus | Auto/Semi-automatic/Manual |
| Lens | |
| Focal Length | 4.8 mm to 153 mm, 32× optical |
| Zoom Speed | Approx. 3.5 s (optical lens, wide-tele) |
| Angle of View | Horizontal field of view: 55.6° to 2.04° (wide-tele) |
| Vertical field of view: 32.4° to 1.14° (wide-tele) | |
| Diagonal field of view: 63° to 2.34° (wide-tele) | |
| Minimum Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.6 to F4.6 |
| Pan & Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Configurable, from 0.1°/s to 250°/s |
| Preset Speed: 300°/s | |
| Tilt Range | From -5° to 90° (Auto-flip) |
| Tilt Speed | Tilt Manual Speed: 0.1°-150°/s, |
| Tilt Preset Speed: 200°/s | |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Pattern | 4 pattern scans, record time over 10 minutes for each scan |
| Power loss recovery | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Position Display | ON/OFF |
| Freeze Frame | Support |
| Smart Features | |
| Smart Tracking | Manual Tracking, Auto Tracking, Event Tracking |
| Smart Detection | Audio Exception Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| Alarm | |
| Alarm Input | 2-ch |
| Alarm Output | 1-ch |
| Input & Output | |
| Audio Input | 1-ch |
| Audio Output | 1-ch |
| Network | |
| Max.Image Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 50fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| 60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) |
| 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) | |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | |
| Image Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264/MJPEG | |
| ROI encoding | Main stream, sub-stream and third stream respectively support four fixed areas. |
| Audio Compression | G.711ulaw/G.711alaw/G.726/MP2L2/G.722/PCM |
| Protocols | Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| No. of Simultaneous Users | Up to 20 users |
| Dual Stream | Support |
| Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| User/Host Level | Up to 32 users,3 Levels: Administrator, Operator and User |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| EZVIZ | Support |
| Client GUI | |
| Camera Control | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display | Time: Week: Date, 6 formats on the Client |
| Client | Support iVMS-4200 |
| Web Browser | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + |
| General | |
| Menu Language | English |
| Power Supply | 24 VAC & PoE+ (802.3at, class4), Max.:18 W |
| Working Temperature/Humidity | -30°C to 65°C (-22°F to 149°F) |
| 90% or less | |
| Protection Level | IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Mounting | Various mounting modes optional |
| Dimensions | Φ 220 mm × 280 mm (Φ 8.66" × 11.02") |
| Weight (approx.) | 3Kg (6.61Ibs) |
| Mount Option | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
Çözünürlük : VGA
