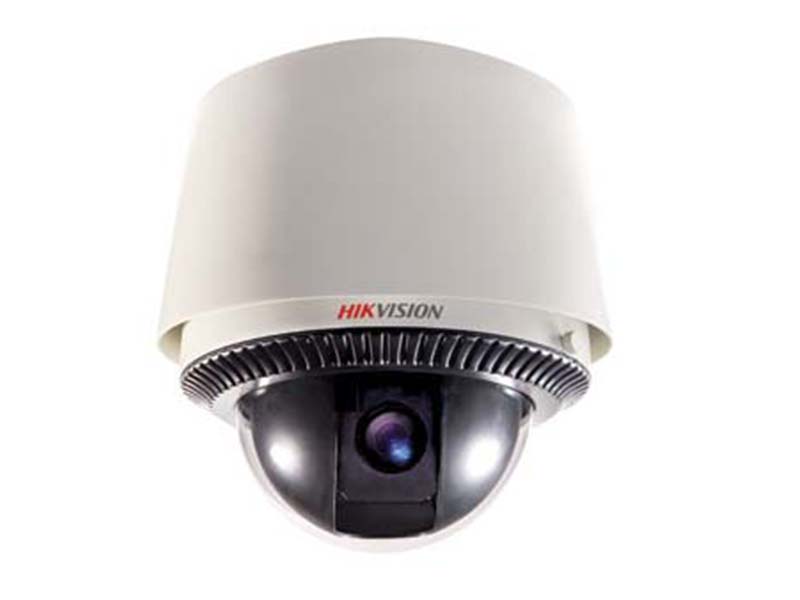

Hikvision DS 2DF1 611H IP Speed Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Horizontal Resolution | 480TVL |
| Signal System | PAL/NTSC |
| Minimum Illumination | 1.0Lux / F1.4 |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| Shutter Time | N: 1/60~1/10 |
| Day& Night | Electronic |
| Digital Zoom | Up to 12x |
| Privacy Masking | 24 privacy masks programmable; optional multiple colors and mosaics |
| Auto Focus | Auto/Manual |
| Lens | |
| Focal Length | 4.1~73.8mm,18X |
| Zoom Speed | Approx. 2.1sec (Optical WIDE-TELE ) |
| Angle of View | 48° to 2.8°(WIDE-TELE ) |
| Minimum Working Distance | 290mm (WIDE) |
| Aperture Range | F1.4-F3.0 |
| Pan & Tilt | |
| Pan Speed | Manual: approx. 0.3°/s-160°/s or 0.3°/s-220°/s |
| Tilt Speed | Manual: approx. 0.5°/s-40°/s or 0.5°/s-60°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 200 |
| Patrol | 8 |
| Pattern | 4 |
| Power-off Memory | Support |
| Park Action | Call Preset/Patrol/Pattern/Auto Scan/Random Scan/Frame Scan after a pre-defined inactivity time interval |
| PTZ Position Display | ON/OFF |
| Alarm | |
| Alarm Input: | 2 |
| Alarm Output | 2 |
| Alarm Actions | Preset 1 ~ 200, Patrol 1 ~ 8, Pattern 1 ~ 4, SD card recording, Terminal output, Notification on Client |
| Input & Output | |
| Monitor Output | 1.0Vp-p, 75 Ohm, BNC |
| Audio Input | 1 channel Mic. Input (applicable microphone, plug-in power type), 2.0~2.4Vp-p, 1k Ohm±10% |
| Audio Output | 1 channel audio output, linear level |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Frame Rate | 25fps (704×576) |
| Audio Compression | OggVorbis, 16Kbps |
| Audio Mode | OFF/Audio input/Audio output |
| Protocols | TCP/IP |
| No. of Simultaneous Users | Up to 6 users |
| Dual Stream | Support |
| Mini SD Card | Manual REC / alarm REC, built-in SD/SDHC slot, up to 32GB |
| Security Measures | User authentication (ID and PW), host authentication (MAC address) |
| Client GUI | |
| Camera Control | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display | Time: Week: Date, 6 formats on the Client |
| General | |
| RS-485 Protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language | English / Chinese |
| Power Consumption | 30W Max (Heater ON) |
| Working Temperature/Humidity | -30°C ~ 60°C |
| Protection Level | IP66 with TVS 3000V lightning protection, surge protection and voltage transient protection |
| Dimensions | 6 inch |
| Weight (approx.) | 5kg |
Hikvision DS 2DF1 611H IP Speed Dome Kamera Pdf Dosyası282.92 KB
Teknik Kısa
Depolama : Var
