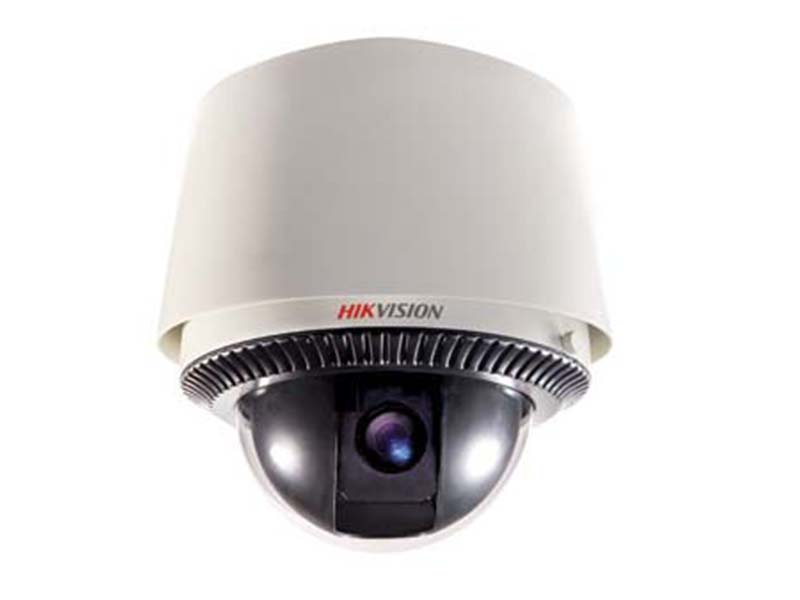

Hikvision DS 2DF1 672 IP Speed Dome Kamera
Özellikler
- 1/3’’ SONY CCD
- Lens resolution: up to 1.3 Megapixel resolution
- ±0.1° preset accuracy
- 360° endless pan range and -5°-90° tilt range
- H.264 video codec
- Weather Proof: IP66 standard for outdoor dome
- Optical zoom: 18X.
Teknik Özellikler
| Camera | |
| Effective Pixels | 1280(H)x960(V) |
| Minimum Illumination | Color: 0.5Lux@F1.6 |
| B/W: 0.02Lux@F1.6 | |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| Shutter Time | 1/25-1/100,000s |
| Day& Night | ICR |
| Digital Zoom | 12X |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 4.7~84.6mm, 18x |
| Zoom Speed | Approx.2s(Optical Wide-Tele) |
| Angle of View | 55.2~3.2 degree (Wide-Tele) |
| Minimum Working Distance | 10~1500mm(Wide-Tele) |
| Aperture Range | F1.6~F2.8 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Speed | Pan Manual Speed: 0.1° -75°/s, |
| Pan Preset Speed: 75°/s | |
| Tilt Range | -5°~90° (Auto Flip ) |
| Tilt Speed | Tilt Manual Speed: 0.1°-50°/s, |
| Tilt Preset Speed: 50°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 256 |
| Patrol | 8 patrols, each patrol up to 32 presets |
| Pattern | 4 patterns, with the total recording time not less than 10 min |
| Power-off Memory | Support |
| Park Action | Call Preset / Patrol / Pattern / Auto Scan / Random Scan / Frame Scan, after a defined time of inactivity |
| PTZ Position Display | ON/OFF |
| Alarm | |
| Alarm Input | 1 |
| Alarm Actions | Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client |
| Input & Output | |
| Monitor Output | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
| Audio Input | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% |
| Audio Output | Line level, impendance: 600Ω |
| Network | |
| Ethernet: | 10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional) |
| Max.Image Resolution | 1280×720 |
| Frame Rate | 50HZ:25 fps (1280×720) |
| Audio Compression | G.711 / 16kbps |
| Audio Mode | OFF/Audio input/Audio output |
| Protocols | TCP/IP、HTTP、DHCP、DNS、RTP/RTCP、PPPoE(FTP、SMTP、NTP、SNMP optional) |
| No. of Simultaneous Users | Up to 6 users |
| Dual Stream | Support |
| Mini SD Card | Manual REC / alarm REC, built-in SD/SDHC slot, up to 32GB |
| User/Host Level | characters3 Levels: Administrator, Camera control, Live view only |
| Security Measures | User authentication (ID and PW), host authentication (MAC address) |
| Client GUI | |
| Camera Control | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Camera Name | Up to 18 characters |
| Date & Time Display | Time: Week: Date, 6 formats on the Client |
| Reading Patrol Message | Display and reading of preset message contained in each patrol via client |
| software | |
| Fiber Optical Interface (Available for Fiber dome) | |
| Data Mode | 10Base-T / 100Base-TX |
| Physical Interface | FC / SC optional |
| Fiber Wavelength | TX1310/RX1550nm |
| Fiber Type | Single Fiber/Single mode |
| Transmission Distance | 20Km, 40Km / 60Km/ 80Km optional |
| General | |
| RS-485 Protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language | English / Chinese |
| Power Consumption | 15W max(30W max with heater, outdoor dome) |
| Working Temperature/Humidity | -30°C~65°C(-22°F~149°F)(outdoor) |
| -10°C~50°C(14°F~122°F)(indoor) | |
| Protection Level | IP66 standard (outdoor), TVS 3,000V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes option |
| Dimensions | Φ242.8×286.9mm (Φ9.56”×11.30”) |
| Weight (approx.) | 5000g(11.02lbs) |
| Mount Option | Long-arm wall mount: DS-1611ZJ; Corner mount: DS-1632ZJ; Pole Mount: DS-1621ZJ; Power box mount:DS-1631ZJCeiling Mount:DS-1642ZJ(White) |
Hikvision DS 2DF1 672 IP Speed Dome Kamera Pdf Dosyası418.28 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 1.3MP
