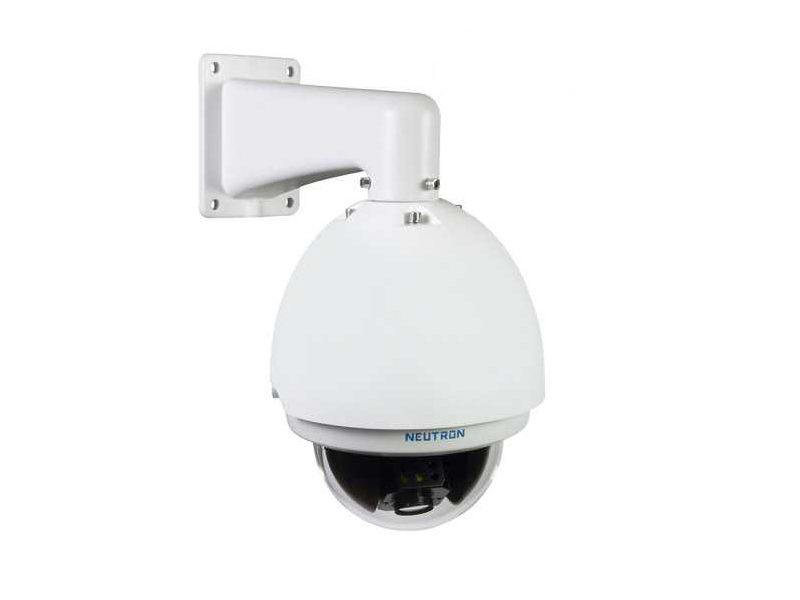

Neutron PTZ1182C N IP Speed Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Exmor CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels |
| Scanning System | Progressive |
| Electronic ShutterSpeed | 1/1 ~ 1/10,000s |
| Min. Illumination | Color: 0.05Lux @ F1.6, B/W: 0.005Lux @ F1.6 |
| S/N Ratio | More than 50dB |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / DWDR(Digital WDR) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D / 3D |
| Privacy Masking | Up to 24 areas |
| Digital Zoom | 16x |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC |
| Lens | |
| Focal Length | 4.30mm ~ 129mm (30x Optical zoom) |
| Max Aperture | F1.6 ~ F5.0 |
| Focus Control | Auto / Manual |
| Angle of View | H: 65.1° ~ 2.34° |
| Close Focus Distance | 10mm ~ 1200mm |
| Video | |
| Compression | H.264 / MJPEG |
| Resolution | 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ |
| D1(704×576/704×480)/ CIF(352×288/352×240) | |
| Frame Rate | Main Stream: 25/30fps @ 1080P/720P> |
| Sub Stream: 25/30fps @ D1/CIF> | |
| Bit Rate | H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| ONVIF | ONVIF Profile S |
| Max. User Access | 20 users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
| Pan/Tilt System | |
| Pan Range | 360° endless |
| Pan Speed | 0.1° ~ 100°/sec |
| Tilt Range | -90° ~ 40° |
| Tilt Speed | 0.1° ~40°/sec |
| Positioning Accuracy | ±0.02° |
| Preset | 255 |
| Tour | 8 |
| Pattern | 5 |
| Auto Scan | 5 |
| Idle Motion | Support |
| 3D Positioning | Support |
| Preset Auto-Calibration | Support |
| Remote P/T/Z Reset | Support |
| Wiper | Built-in |
| LED Infrared Light | |
| IR Distance | N/A |
| IR Wave Length | N/A |
| IR Emission Angle | N/A |
| Auxiliary Interface | |
| Memory Slot | Micro SD, Max 64GB |
| RS485 | Duplex |
| Alarm | 2/1 channel In/Out |
| General | |
| Power Supply | AC 24V/5A |
| Power Consumption | ≤100W |
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH |
| Protection | IP66, All-metal aluminum alloy, 6000V anti-lightning surge |
| Weight | 18.3Kg |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
