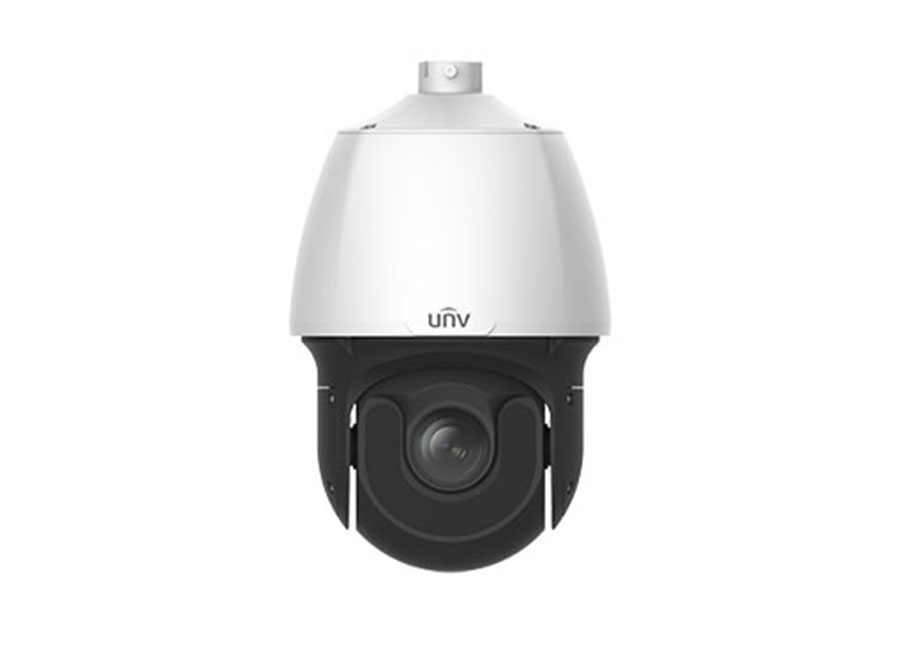

Uniview IPC6258SR X22DUP IR IP PTZ Kamera
Özellikler
Optics
- 22X Optical Zoom
- Fifth-generation infrared technology, more than 200m (656ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- Optical glass window with higher light transmittance
- Smart IR
- EIS (Electronic Image Stabilization)
Network
- ONVIF Conformance
- Innovative snow-removing functionality
- Intelligent temperature control technology
- More effective heat dissipation system
- IP66
Teknik Özellikler
| Camera | IPC6258SR-X22DUP | ||||
| Sensor | 1/1.8", progressive scan, 8megapixel, CMOS | ||||
| Lens | 6.5~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens | ||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 6.5mm | 146.3 | 58.5 | 29.3 | 14.6 | |
| 143mm | 3217.5 | 10.7 | 643.5 | 321.8 | |
| Angle of View (H) | 58.9°~3.4° | ||||
| Angle of View (V) | 35.2°~1.9° | ||||
| Angle of View (O) | 72.5°~4.1° | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000 s | ||||
| Minimum Illumination | Colour: 0.003 lux (F1.5,AGC ON) | ||||
| 0 lux with IR | |||||
| Iris | Auto/Manual, F1.5 ~ F3.4 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >55 dB | ||||
| IR Range | UP to 200m (656ft) | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream:8MP(3840 × 2160): Max.30fps, 2MP(1920×1080)@30fps； | ||||
| Sub Stream:2MP(1920×1080) : Max. 25fps； | |||||
| Third Stream: D1 (720×576): Max. 20fps | |||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| EIS | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way Audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8 KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T),API | ||||
| Pan & Tilt | |||||
| Pan Range | 360° | ||||
| Pan Speed | 0.1°/s ~ 74°/s | ||||
| Preset speed: 300°/s | |||||
| Tilt Range | –15° ~ +90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~74°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Home Position | Supported | ||||
| Interface | |||||
| Audio I/O | Audio cable | ||||
| 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |||||
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |||||
| Alarm I/O | 1.1 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| General | |||||
| Power | 24 V AC±25%, 24 V DC±25%, PoE(PSE Required) | ||||
| Power consumption: 9~60W | |||||
| Dimensions (Ø x H) | Ø227x359.4 mm (Ø8.9” x 14.2”) | ||||
| Weight | 5.55 kg (12.24 lb) | ||||
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95% RH(non-condensing) | ||||
| Ingress Protection | IP66 | ||||
| Reset Button | Supported | ||||
Uniview IPC6258SR X22DUP IR IP PTZ Kamera Pdf Dosyası669.87 KB
Teknik Kısa
Çözünürlük : 8MP
