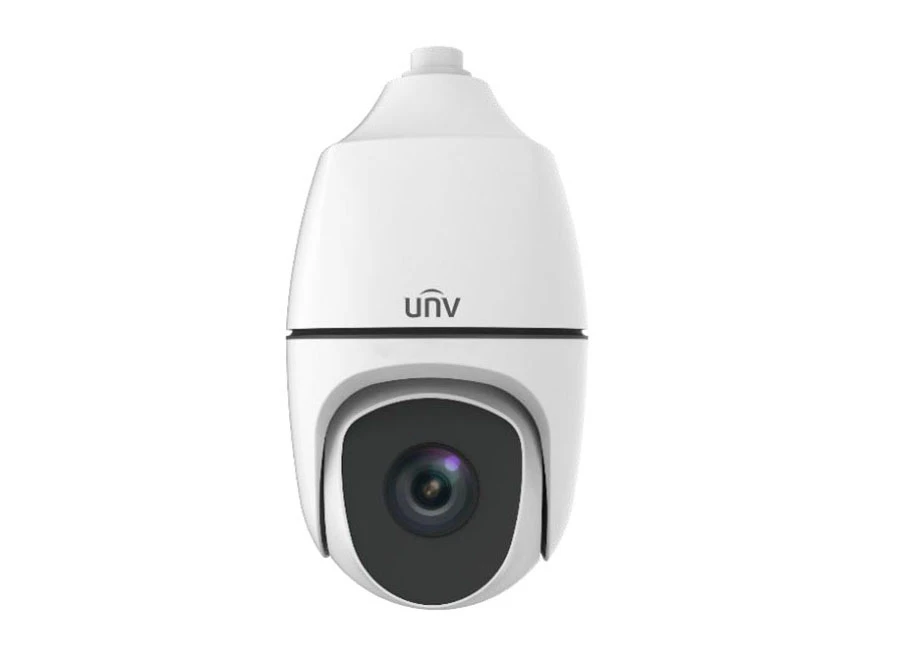

Uniview IPC6854SR X38UP VC IR IP PTZ Kamera
Özellikler
Optics
- 38X Optical Zoom
- Starlight illumination
- Accurate and fast focusing
- Smart IR, up to 250m (820ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Gyroscope
Network
- ONVIF Conformance
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- IP66
- PoE++ (IEEE 802.3bt)
Teknik Özellikler
| Camera | |||||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | 5.7 ~ 216.6mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 38 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 5.Tem | 97.5 | 39 | 19.5 | 9.8 | |
| 216.6 | 3030 | 1212 | 606 | 303 | |
| Angle of View (H) | 58.5° ~ 2.1° | ||||
| Angle of View (V) | 34.9° ~ 1.2° | ||||
| Angle of View (O) | 72.0° ~ 2.5° | ||||
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.0005Lux (F1.3, AGC ON) | ||||
| 0Lux with IR | |||||
| Iris | Auto/Manual; F1.3 ~ F4.6 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >55dB | ||||
| IR Range | UP to 250m (820ft) | ||||
| Defog | Optical Defog & Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 60fps; | ||||
| Sub Stream: 2MP (1920*1080), Max 60fps; | |||||
| Third Stream: D1 (720*576), Max 60fps | |||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| EIS | Supported (Gyroscope) | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Pan & Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 74°/s | ||||
| Preset speed: 300°/s | |||||
| Tilt Range | -20° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 74°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Home Position | Supported | ||||
| Interface | |||||
| Audio I/O | Audio cable | ||||
| Input: impedance 1kΩ; amplitude 2V [p-p] | |||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 2.1 | ||||
| Serial Port | 1 RS485 | ||||
| Network | 1 RJ45 10M / 100M Base-TX Ethernet | ||||
| General | |||||
| Power | AC 24V ±25%, DC 24V ±25%, PoE++ (IEEE 802.3bt) (IEEE802.3bt switch required) | ||||
| Power consumption: 16 ~ 51W | |||||
| Dimensions (Ø x H) | Φ270 x 496.7mm (Φ10.6” x 19.6”) | ||||
| Weight | 9.69kg (21.4lb) | ||||
| Working Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
| Ingress Protection | IP66 | ||||
| Reset Button> | Supported | ||||
Uniview IPC6854SR X38UP VC IR IP PTZ Kamera Pdf Dosyası727.93 KB
Teknik Kısa
Çözünürlük : 4MP
