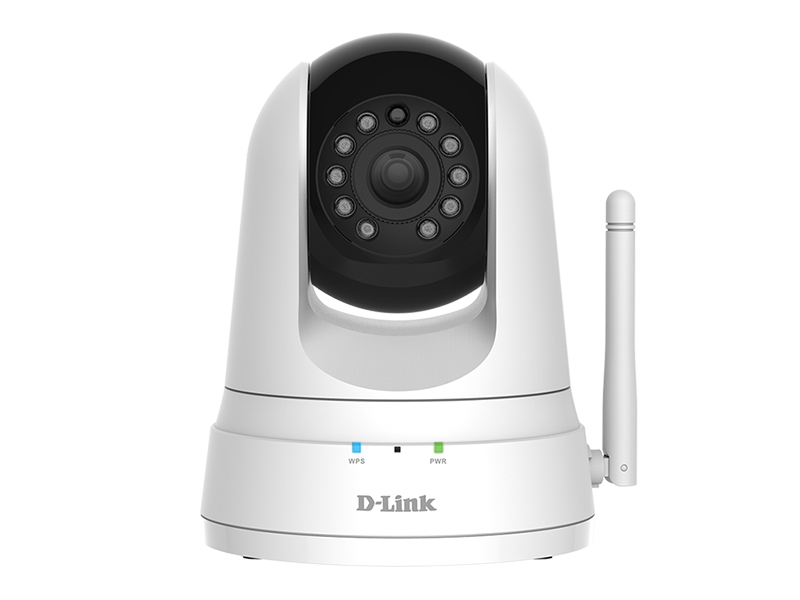

D-Link DCS 5000L IP Speed Dome Kamera
Teknik Özellikler
Camera Hardware Profile 1/5” VGA progressive CMOS sensor 8 metre IR illumination distance Minimum illumination: 0 lux with IR LEDs on Built-in Infrared-Cut Removable (ICR) Filter module 4X digital zoom Lens: Fixed length 2.2 mm Aperture: F2.4 Angle of view: (H) 57° (V) 42° (D) 68° Exposure Time: 1/15 to 1/15,000 sec. Built-in microphone Image Features Configurable image size, quality, frame rate, and bit rate Time stamp and text overlay Configurable motion detection windows Adjustable brightness, saturation, contrast Flip & mirror Pre-event snapshot/recording Video Compression MJPEG multi-streaming JPEG for still images Video Resolution 640 x 480 at frame rates up to 20 fps; 320 x 240, 160 x 112 at frame rates up to 30 fps JPEG Quality: Very Low, Low, Medium, High, Very High Video Features AGC,AWB,AES Audio Compression PCM Connectivity 10/100 BASE-T Ethernet port 802.11n/g/b wireless Pan/Tilt Pan Range -170° to +170° (total 340°) Tilt Range -25° to +95° (total 120°) Angular Velocity 16° per second Step Setting Pan 1°/2°/3°/4°/5°(default)/10°/15°/20°/25°/30°/per click Tilt: 1°/2°/3°/4°/5°(default)/10°/15°/20°/25°/30°/per click Network Connectivity 802.11n/g/b wireless 10/100 BASE-TX Fast Ethernet Network Protocols IPV4, ARP, TCP, UDP, ICMP DHCP Client NTP Client (D-Link) DNS Client DDNS Client (D-Link) SMTP Client FTP Client HTTP Server PPPoE, LLTD UPnP Port Forwarding LLTD Security WPS,WEP WPA-PSK, WPA2 HTTP digest encryption Password authentication
Fiziksel Özellikler
System Requirements for Web Interfaces |
Operating system: Microsoft Windows Vista/7/8/101, Mac OS X 10.7 |
Browser: Internet Explorer 8/Firefox 12/Safari 6/Chrome 202 or higher with Java and/or ActiveX installed and enabled (mydlink portal only) |
Weight |
Device: 292.8 grams (0.65 lbs) |
Stand: 60.8 grams (0.13 lbs) |
Power |
Input: 100-240 V AC, 50/60 Hz |
Output: 5 V DC, 1.5 A Micro-USB |
Power Consumption |
4.8 watts |
Temperature |
Operating: 0 to 40 °C (32 to 104 °F) |
Storage: -25 to 70˚ C (-13 to 158 ˚F) |
Humidity |
Operating: 20% to 85% non-condensing |
Storage: 5% to 95% non-condensing |
Certifications |
CE |
CE LVD |
FCC |
C-Tick |
Dimensions |
116.4 x 109.1 x 133.6 mm (4.58 x 4.30 x 5.26 inches) (Camera only) |
116.4 x 109.1 x 230.0 mm (4.58 x 4.30 x 9.06 inches) (Including mounting bracket) |
