Açıklama

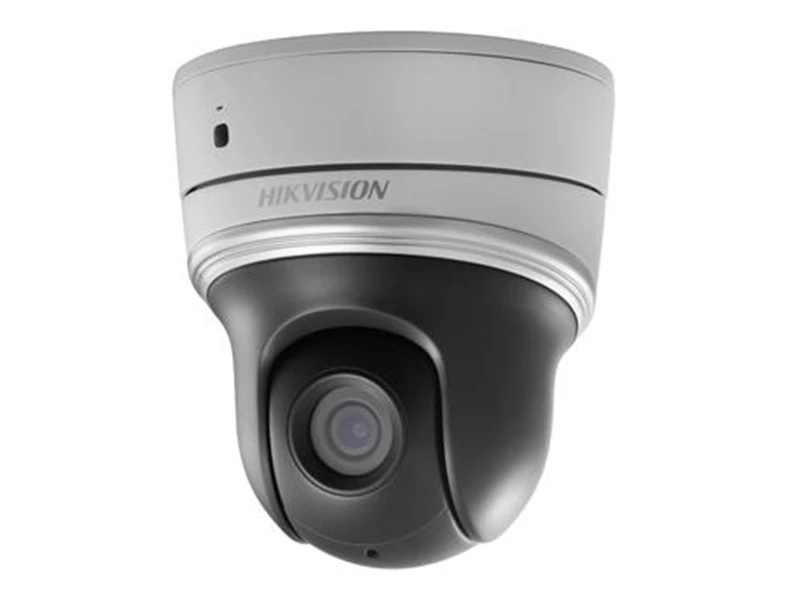

Haikon DS 2DE2202I DE3 W IP HD Speed Dome Kamera
Teknik Özellikler
| Camera |
| Image Sensor : 1/3" Progressive Scan CMOS |
| Effective Pixels : 1280(H) × 720(V)/1920(H) × 1080(V) |
| Signal System : PAL/NTSC |
| Minimum Illumination : F2.0, AGC On: Color:0.05 lux, B/W : 0.01 lux, 0 lux with IR |
| White Balance : Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC : Auto/Manual |
| BLC : ON/OFF |
| HLC : Support |
| WDR : Support |
| Shutter Time : 1/1~1/10,000s |
| Day& Night : ICR |
| Digital Zoom : 16X |
| Privacy Masking : 8 privacy masks programmable |
| Auto Focus : Auto / Semi-automatic / Manual |
| Lens |
| Focal Length : 3.6~11mm, 3x(DS-2DE2103I-DE3/W) 3.6~8.6mm, 2x(DS-2DE2202I-DE3/W) |
| Zoom Speed : Approx.1s(Wide~Tele) |
| Angle of View : 77~37 degree, 3x(DS-2DE2103I-DE3/W) 77~50 degree, 2x(DS-2DE2202I-DE3/W) |
| Aperture Range : F2.0 |
| Pan & Tilt |
| Pan Range : Pan: 0~350° |
| Pan Speed : Pan Manual Speed: 0.1°~60°/s |
| Tilt Range : Tilt: 0°~90° |
| Tilt Speed : Tilt Manual Speed: 0.1°~50°/s |
| Number of Preset : 300 |
| Patrol : 8 patrols, up to 32 presets per patrol |
| Power loss recovery : Support |
| Park Action : Preset |
| PTZ Position Display : ON/OFF |
| Infrared |
| IR irradiation distance : 20m |
| IR irradiation angle : Adjustable by zoom |
| Alarm |
| Alarm Input : 1 |
| Alarm Output : 1 |
| Alarm Actions : Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage |
| Input & Output |
| Audio Input : 1 built-in microphone; 1 audio input (Mic/Line in), 2~2.4V[p-p]; output impedance: 1KΩ, ±10% |
| Audio Output : 1 Audio output interface |
| Line level, impedance: 600Ω |
| Network |
| Ethernet : 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution : DS-2DE2103I-DE3/W:1280×720; DS-2DE2202I-DE3/W : 1920×1080 |
| Main Stream : DS-2DE2103I-DE3/W: 50Hz: 25 fps (1280×720), 60Hz: 30 fps (1280×720); DS-2DE2202I-DE3/W : 50Hz: 25 fps (1920×1080), 60Hz: 30 fps (1920×1080) |
| Sub Stream : 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)/60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120) |
| Image Compression : H.264 / MJPEG |
| ROI encoding : Support 4 areas with adjustable levels |
| Audio Compression : G.711ulaw/G.711alaw/G.726/MP2L2 |
| Protocols : IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE |
| No. of Simultaneous Users : Up to 20 users |
| Dual Stream : Support |
| Mini SD Card : Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| User/Host Level : User authentication (ID and PW), |
| Host authentication (MAC address) |
| IP address filtering |
| Security Measures : User authentication (ID and PW), |
| Host authentication (MAC address) |
| IP address filtering |
| EZVIZ : Support |
| Client GUI |
| Date & Time Display : Time: Week: Date, 6 formats on the Client |
| Client : Support iVMS-4200 |
| Web Browser : IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + |
| General |
| Menu Language : English / Chinese |
| Power Supply : 12V DC or PoE((802.3af, class3) |
| Power Consumption : Max. 9W |
| Working Temperature/Humidity : -10℃~50℃(14℉~122℉)(indoor dome) |
| Protection Level : IP54, TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Mounting : Various mounting modes optional |
| Dimensions : Φ125×137.2mm |
| Weight (approx.) : 650g |
| Mount Option : Wall mount: DS-1294ZJ |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
Irled : Var
Depolama : Var
