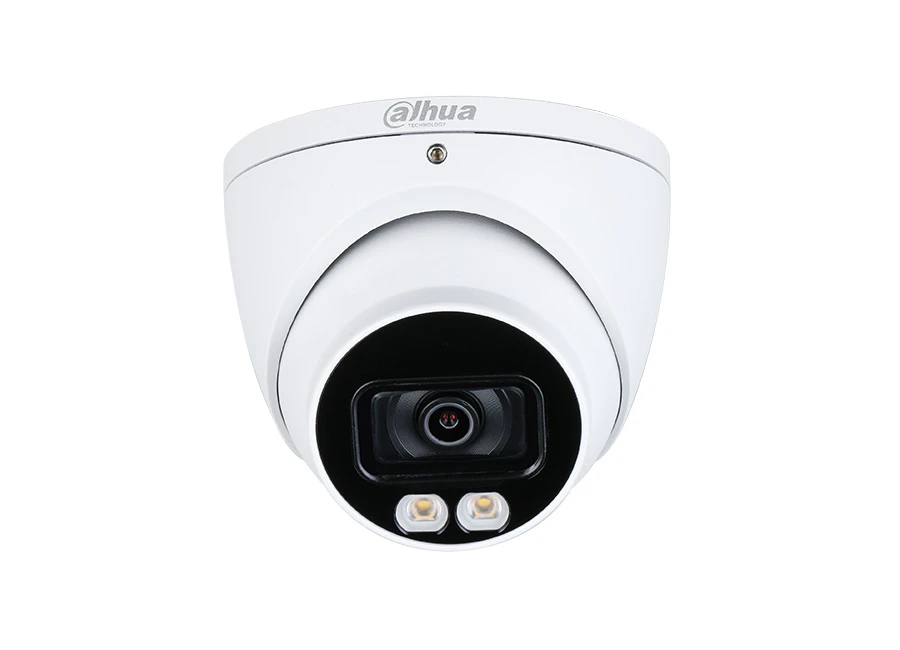

Dahua HAC HDW1239T (-A) LED HDCVI Eyeball Kamera
Özellikler
Teknik Özellikler
| Camera | ||||
| Image Sensor | 1/2.8 inch 2.16 Mega Pixels CMOS | |||
| Effective Pixels | 1920 (H)×1080 (V), 2MP | |||
| Electronic Shutter Speed | PAL:1/25s–1/100000s | |||
| NTSC:1/30s–1/100000s | ||||
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux white Light on | |||
| Fill Light (White Light) Distance | Distance up to 40m (131.23ft) | |||
| Fill Light On/Off Control | Auto; Manual | |||
| Fill Light Number | 2 | |||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | |||
| Tilt: 0°–78° | ||||
| Rotation: 0°–360° | ||||
| Lens | ||||
| Lens Type | Fixed-focal | |||
| Mount Type | M12 | |||
| Focal Length | 3.6mm | |||
| Max. Aperture | F1.6 | |||
| Angle of View | 103.6°x86.9°x46.3° (diagonalxhorizontalxvertical) | |||
| Iris Type | Fixed iris | |||
| Close Focus Distance | 1.2m (3.94ft) | |||
| DORI Distance | Detect | Observe | Recognize | Identify |
| 55.2m (181.1ft) | 22.1m (72.5ft) | 11.0m (36.0ft) | 5.5m (18.0ft) | |
| Video | ||||
| Video Frame Rate | CVI: | |||
| PAL: 1080@25fps, 720@25fps, 720@50fps; | ||||
| NTSC: 1080@30fps, 720@30fps, 720@60fps | ||||
| AHD: PAL: 1080@25fps,720@25fps; | ||||
| NTSC: 1080@30fps,720@30fps | ||||
| TVI: PAL: 1080@25fps,720@25fps,720@50fps; | ||||
| NTSC: 1080@30fps,720@30fps,720@60fps | ||||
| CVBS: PAL: 960×576H; | ||||
| NTSC: 960×480H | ||||
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (704× 576/704×480) | |||
| BLC | BLC/HLC/WDR | |||
| WDR | DWDR | |||
| White Balance | Auto; Manual | |||
| Gain Control | Auto; Manual | |||
| Noise Reduction | 2D NR | |||
| Smart Light | Yes | |||
| Electronic Defog | Yes | |||
| Digital Zoom | 16X | |||
| Mirror | Off/On | |||
| Privacy Masking | Off/On (4 area, rectangle) | |||
| Certification | ||||
| Certifications | CE (EN55032, EN55024, EN50130-4,EN60950-1) | |||
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | ||||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | ||||
| Interface | ||||
| Audio Interface | Built-in mic(-A) | |||
| Port | ||||
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |||
| Power | ||||
| Power Supply | 12V ±30% DC | |||
| Power Consumption | Max 5W (12V DC, white light on) | |||
| Environment | ||||
| Operating Temperature | -40°C to +60°C (-40°F to 140°F); | |||
| <95% (non-condensation) | ||||
| Storage Temperature | -40°C to +60°C (-40°F to 140°F); | |||
| <95% (non-condensation) | ||||
| Protection Grade | IP67 | |||
| Structure | ||||
| Casing | Metal throughout the whole casing | |||
| Dimensions | φ106.0mm×93.6mm (φ4.17"×3.69") | |||
| Net Weight | 0.46Kg (1.01lb) | |||
| Gross Weight | 0.61Kg (1.34lb) | |||
Dahua HAC HDW1239T (-A) LED HDCVI Eyeball Kamera Pdf Dosyası598.98 KB
