Açıklama

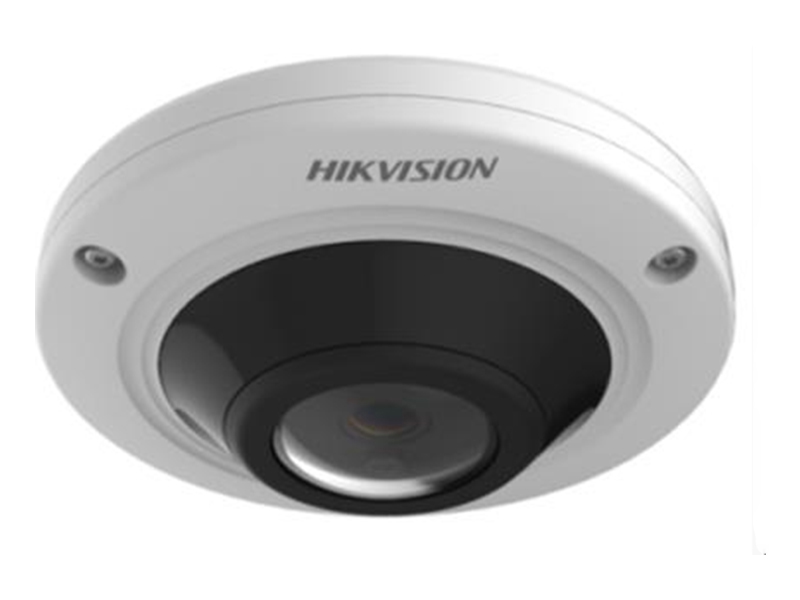

Hikvision DS 2CC52C7T VPIR AHD Dome Kamera
Özellikler
- 1.27 Megapixel high-performance CMOS
- Analog HD output, up to 720P resolution
- True Day/Night
- OSD menu, 3D DNR, Smart IR
- IP66 weatherproof & Vandal Proof
- Low illumination
- Up the Coax(HIKVISION-C, Pelco-C Protocol)
Teknik Özellikler
| Camera | |
| Image Sensor | 1.27MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1305(H)x977(V) |
| Min. Illumination | 0.001 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.1mm, 2.8mm |
| Angel of view: 115°(2.1mm), 92.6°(2.8mm) | |
| Lens Mount | M12 |
| Adjustment Range | Pan：±5°，Tilt：43.5±3.5°，Rotation: ±° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 720p@25fps/720p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
| S/N Ratio | More than 62 dB |
| Up the Coax | Support |
| Menu | |
| D/N Mode | Auto / Color / B/W |
| Auto White Balance | Auto / Manual |
| Private Mask | On/Off, maximum 8 zones |
| Motion Detection | On/Off, maximum 4 zones |
| Language | English/Chinese |
| Function | 3D DNR、Digital Zoom、Slow Shutter(16X)、Mirror |
| General | |
| Operating Conditions | -30℃~65℃(-22 °F ~ 149 °F), Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4W |
| Impact Protection | IK10. |
| Weather Proof | IP66 |
| IR Range | Up to 20m |
| Communication | Up the coax |
| Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) | |
| Dimension | Φ239.8×39.7mm(Φ9.44×1.56) |
| Weight | 1100g |
Hikvision DS 2CC52C7T VPIR AHD Dome Kamera Pdf Dosyası862.82 KB
