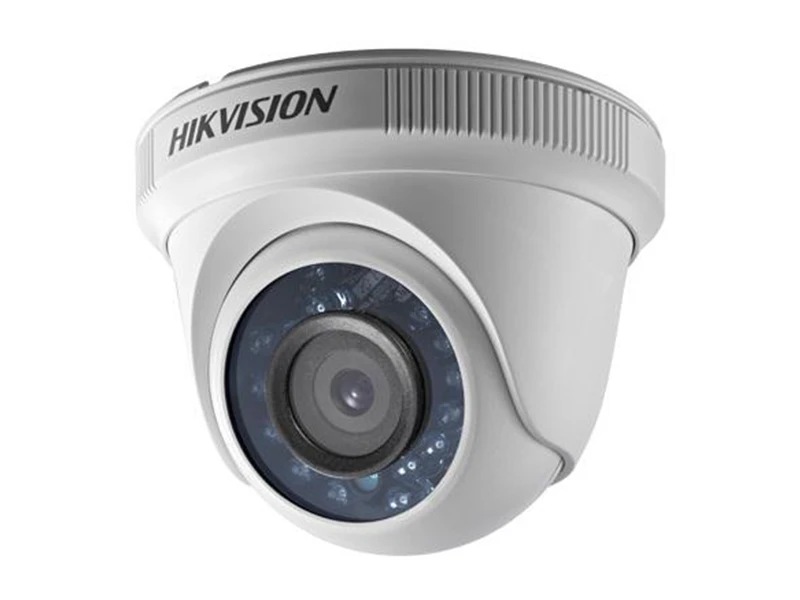

Hikvision DS 2CE56C2T IRP Ahd Turret Dome Kamera
Özellikler
- 1.3 Megapixel high-performance CMOS
- Analog HD output, up to 720P resolution
- True Day/Night
- DNR, Smart IR
- Up to 20m IR distance
Teknik Özellikler
Camera | |
Image Sensor | 1.3MP CMOS Image Sensor |
Signal System | PAL/NTSC |
Effective Pixels | 1280(H)x960(V) |
Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 3.6mm (2.8mm, 6mm optional) |
Angle of View: 78°(3.6mm), 97.3°(2.8mm), 51.2°(6mm) | |
Lens Mount | M12 |
Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | 720p@25fps/720p@30fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
S/N Ratio | More than 62 dB |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±15% |
Power Consumption | Max. 4W |
IR Range | Up to 20m |
Dimension | Φ89.5 × 69.8 mm(Φ3.52” × 2.75”) |
Weight | 200g (0.44 lb) |
Hikvision DS 2CE56C2T IRP Ahd Turret Dome Kamera Pdf Dosyası660.55 KB
