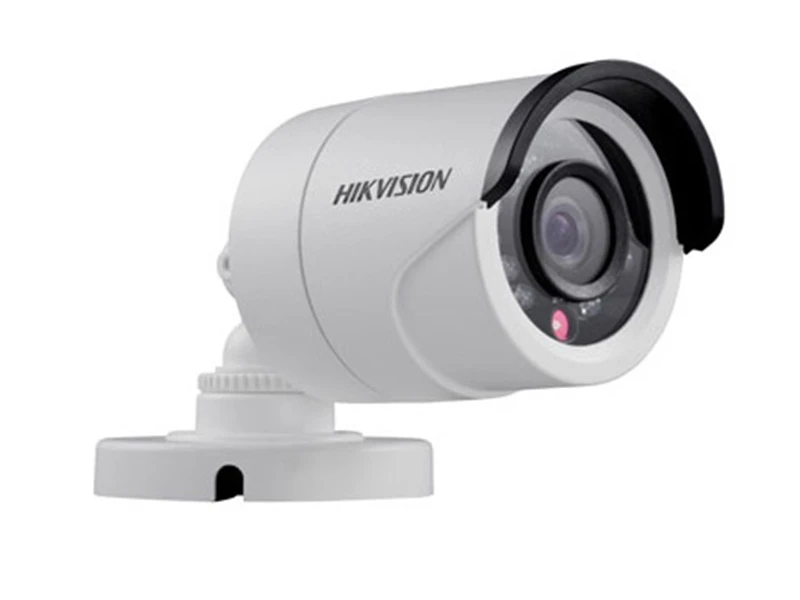

Hikvision DS 2CE16C2T IR AHD Bullet Kamera
Özellikler
- 1.3 Megapixel high-performance CMOS
- Analog HD output, up to 720P resolution
- True day / night
- DNR, Smart IR
- Up to 20m IR distance
- IP66 weatherproof
Teknik Özellikler
| Camera | |
| Image Sensor | 1.3MP CMOS Image Sensor |
| Effective Pixels | 1280(H)x960(V) |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 3.6mm (2.8mm, 6mm optional), Angle of View: 78°(3.6mm), 97.3°(2.8mm), 51.2°(6mm) |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 720p@25fps/720p@30fps |
| Synchronization | Internal Synchronization |
| S/N Ratio | More than 62 dB |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4W |
| Weather Proof | IP66 |
| IR Range | Up to 20m |
| Dimension | Φ70×149.5 mm (Φ2.76” ×5.89”) |
| Weight | 400 g |
Hikvision DS 2CE16C2T IR AHD Bullet Kamera Pdf Dosyası660.66 KB
Hikvision DS 2CE16C2T IR AHD Bullet Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası431.27 KB
Teknik Kısa
Çözünürlük : 1.3MP
