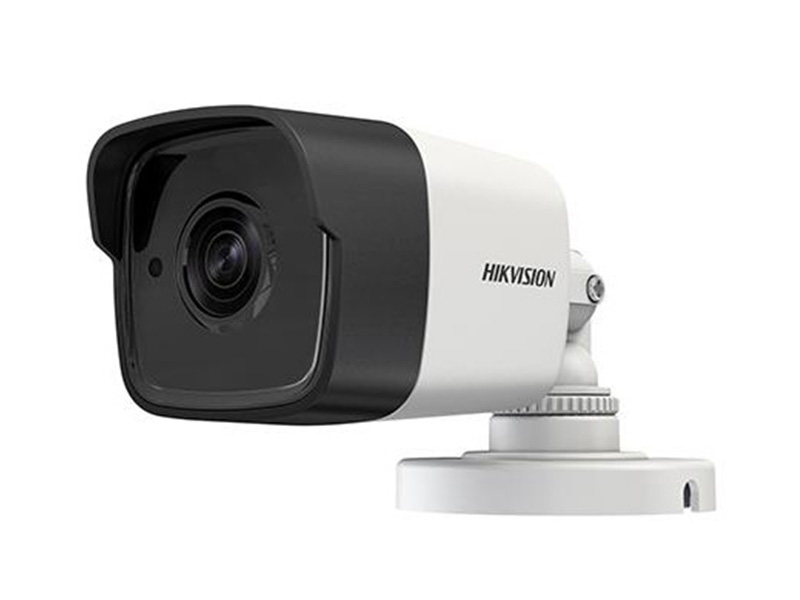

Hikvision DS 2CE16H5T ITP AHD Bullet Kamera
Özellikler
- 5 Megapixel high-performance CMOS
- Analog HD output, up to 5MP resolution
- True Day/Night
- OSD menu, DNR, Smart IR
- EXIR technology, up to 20m IR distance
- IP67
- Up the Coax(HIKVISION-C)
Teknik Özellikler
Camera | |
Image Sensor | 5MP CMOS Image Sensor |
Effective Pixels | 2560 (H) × 1944 (V) |
Min. Illumination | Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 2.8 mm, 3.6 mm, 6 mm fixed focal lens |
Lens Mount | M12 |
Adjustment Range | Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360° |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | 2560 × 1944 @ 20fps |
HD Video Output | 1 Analog HD output |
Synchronization | Internal Synchronization |
Menu | |
D/N Mode | Auto / Color / B/W |
Auto White Balance | Auto/MWB |
BLC | Support |
Language | English/Chinese |
Function | Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±25% |
Power Consumption | Max. 3.5 W |
Weather Proof | IP67 |
IR Range | Up to 20m |
Communication | Up the coax |
Protocol: HIKVISION-C(Coaxitron) | |
Dimension | 58 mm × 61 mm × 163 mm (2.28" × 2.40" × 6.42") |
Weight | Approx. 350 g (0.77 lb.) |
Hikvision DS 2CE16H5T ITP AHD Bullet Kamera Pdf Dosyası798.42 KB
