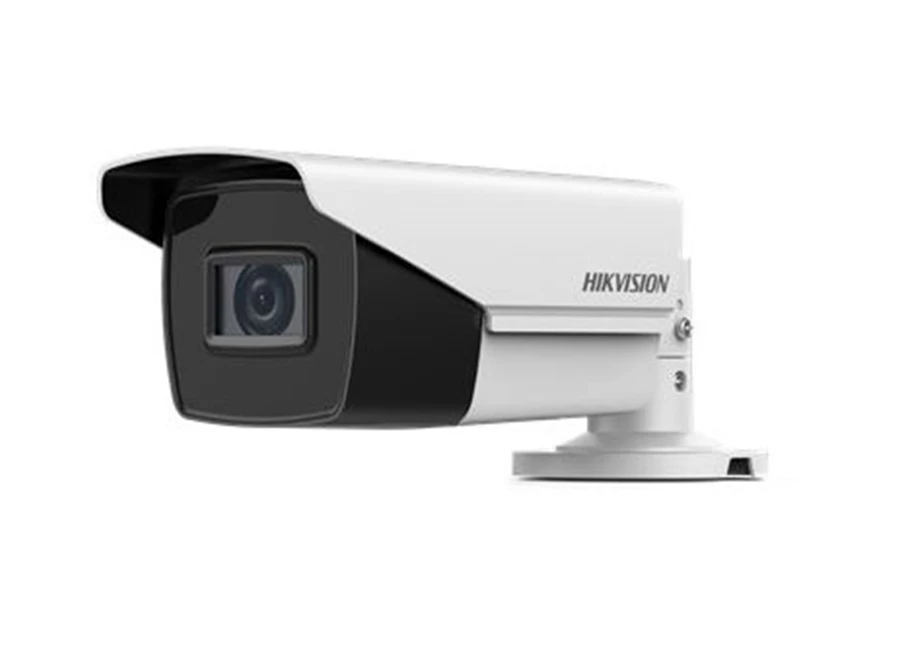

Hikvision DS 2CE19D3T IT3ZF AHD Bullet Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.7 mm to 13.5 mm motorized vari-focal lens |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Day& Night | IR cut filter |
| Video Frame Rate | PAL: 1080p@25fps |
| NTSC: 1080p@30fps | |
| Synchronization | Internal Synchronization |
| Menu | |
| 3D DNR (Digital Noise Reduction) | Level 1 to 9 |
| D/N Mode | Auto/Color/BW (Black and White) |
| BLC | Support |
| AGC | High/Medium/Low |
| WDR | Yes |
| Language | English |
| Function | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Interface | |
| Video Out | 1 HD analog output |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC ±25%;-A: 24 VAC ±15%, 12 VDC ±20%*You are recommended to use one power adapter to supply the power for one camera |
| Power Consumption | Max. 7.7 W;-A: Max. 9.7 W |
| Weather Proof | IP67 |
| IR Range | Up to 70 m |
| Dimension | 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10") |
| Weight | Approx. 648 g (1.43 lb.) |
| -A: Approx. 695 g (1.53 lb.) | |
Hikvision DS 2CE19D3T IT3ZF AHD Bullet Kamera Pdf Dosyası877.57 KB
