Açıklama

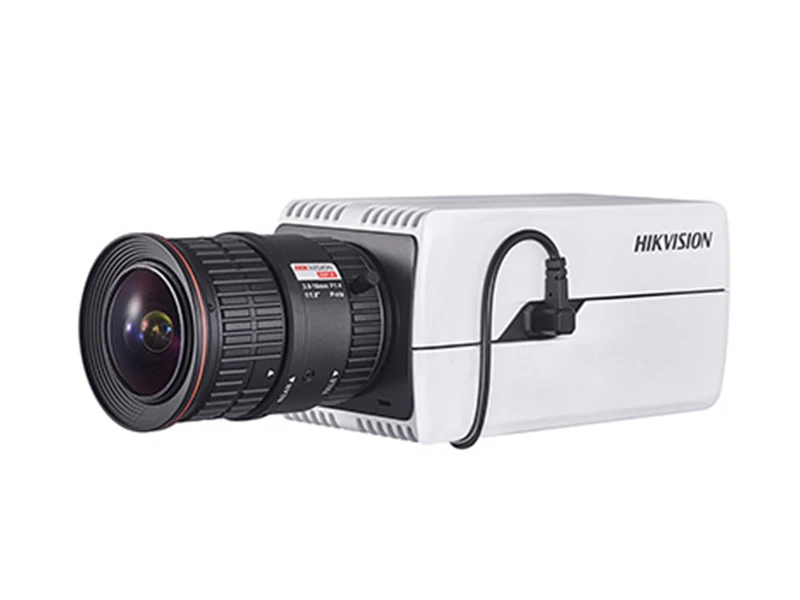

Hikvision DS 2CE37U8T A AHD Box Kamera
Özellikler
- 8.29 Megapixel high-performance CMOS
- Ultra-low light
- 3840 × 2160 resolution
- Auto-Iris
- 120 dB true WDR, 3D DNR
- Alarm, and RS-485 Interfaces
- Dual video output: TVI/CVBS
- Dual voltage input: 12 VDC /24 VAC
- Up the Coax(HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor | 8.29 MP high performance CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 3840 (H) × 2160 (V) |
| Shutter Time | PAL: 1/12.5 s to 1/10,000 s |
| NTSC: 1/15 s to 1/10,000 s | |
| Lens Mount | C/CS Mount |
| Auto Iris | DC Drive |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120dB |
| Video Frame Rate | PAL: 8 , 5 MP@20fps, 4 MP@25fps, 1080p@25fps |
| NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps | |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
| Up the Coax | Support |
| Menu | |
| D/N Mode | Color/ BW/ EXT |
| Auto White Balance | Auto/Manual/Natural |
| Private Mask | ON/OFF, 4 programmable privacy masks |
| BLC | Support |
| AGC | Support |
| Language | English |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC ±25%, 24 VAC ±25% |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | 145.14 mm × 58 mm × 69.8 mm (5.71" × 2.28" × 2.75") |
| Weight | Approx. 520 g (1.15 lb.) |
Teknik Kısa
Irled : Var
