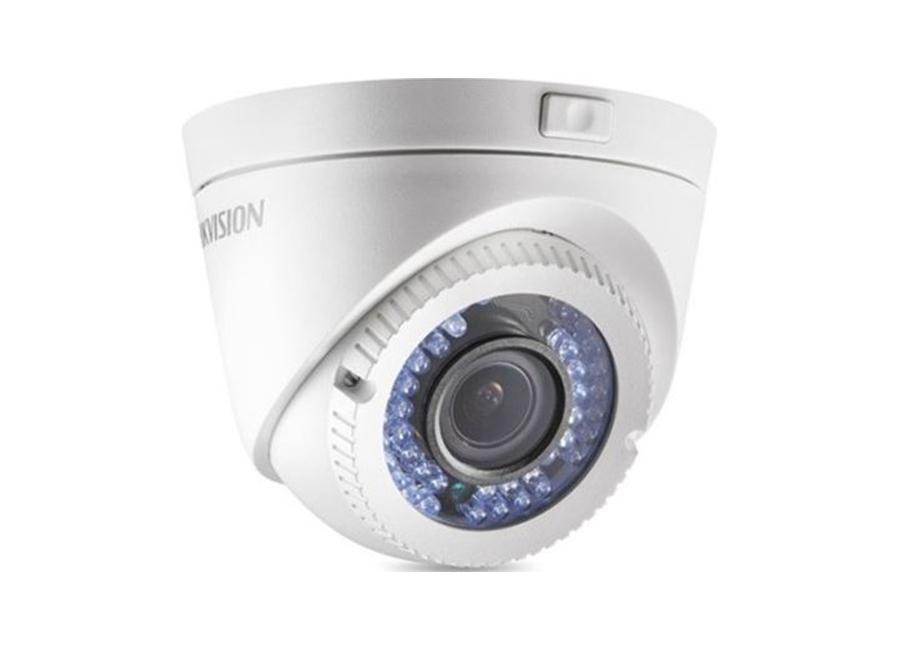

Hikvision DS 2CE56C0T VFIR3F AHD Dome Kamera
Özellikler
- 1 megapixel high performance CMOS
- Analog HD output, up to 720p resolution
- Day/Night switch
- Smart IR
- Up to 40 m IR distance
- Switchable TVI/AHD/CVI/CVBS
- IP66
Teknik Özellikler
| Camera | |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Image Sensor | 1MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1296(H)x732(V) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8 - 12 mm @ F1.4 |
| Lens Mount | φ14 |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 720p@25fps/720p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| S/N Ratio | More than 62 dB |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4 W |
| IR Range | Up to 40m |
| Dimension | Φ130.54 × 102.4mm (Φ5.1” × 4”) |
| Weight | Approx. 710g |
Hikvision DS 2CE56C0T VFIR3F AHD Dome Kamera Pdf Dosyası736.66 KB
