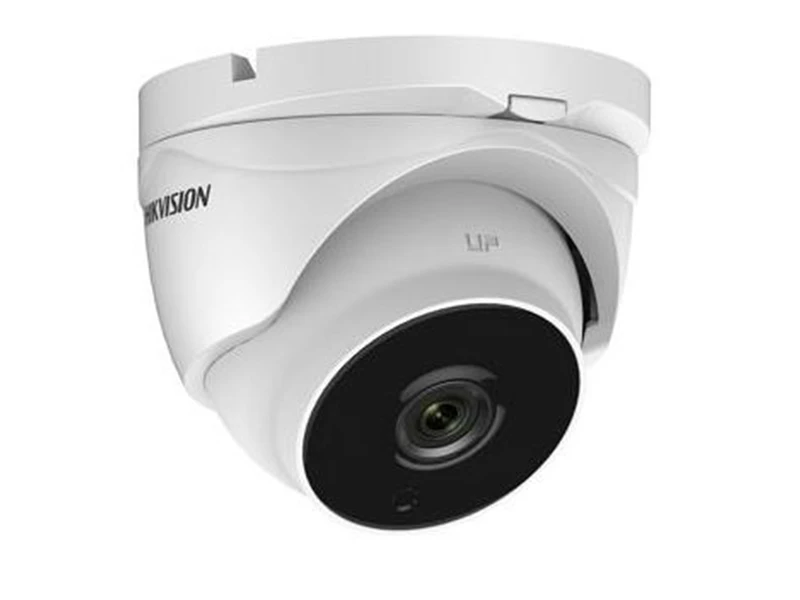

Hikvision DS 2CE56D8T IT3ZE AHD Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920(H)*1080(V) |
| Min. Illumination | Color: 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8 mm to 12 mm motorized vari-focal lens |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120dB |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Up the Coax | Support |
| Menu | |
| Auto White Balance | Auto/MWB |
| BLC | Support |
| AGC | Support |
| Language | English/Chinese |
| Function | Brightness, Sharpness, Mirror, Smart IR |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±25%/ PoC.at |
| -A: 12 VDC±25%, 24 VDC±25%/ PoC.at | |
| Power Consumption | Max. 8W |
| Weather Proof | IP67 |
| IR Range | Up to 40m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | 134.3mm×123.9mm×111.4mm (5.29”×4.88”×4.39”) |
| Weight | Approx. 750g (1.57lb) |
Hikvision DS 2CE56D8T IT3ZE AHD Dome Kamera Pdf Dosyası944.9 KB
Hikvision DS 2CE56D8T IT3ZE AHD Dome Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası1.44 MB
