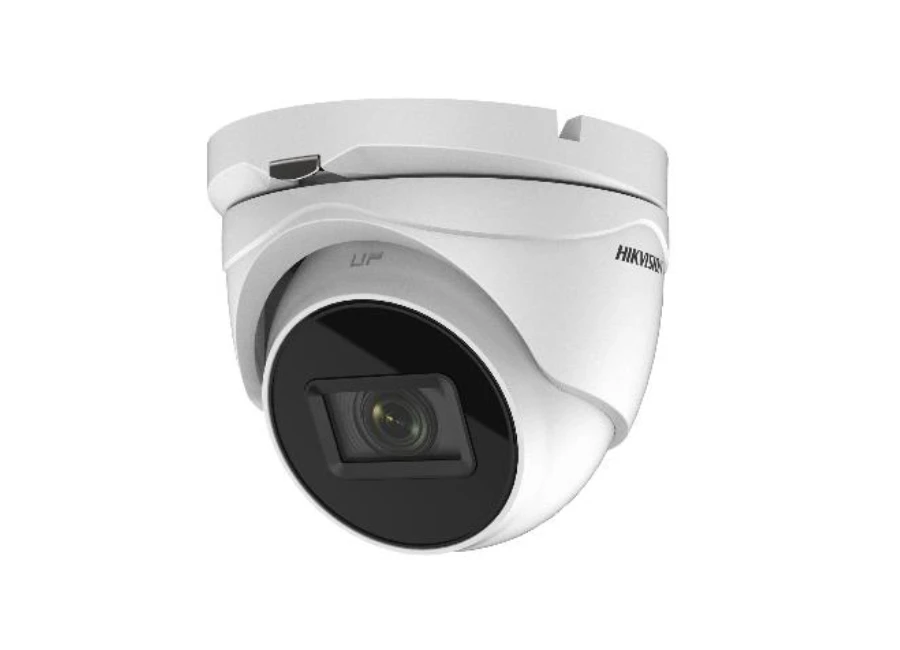

Hikvision DS 2CE79U7T AIT3ZF AHD Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 8.29 MP high performance CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 3840 (H) × 2160 (V) |
| Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| Lens | 2.7 mm to 13.5 mm motorized vari-focal lens |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Day& Night | IR cut filter |
| Video Frame Rate | TVI: , 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: , 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N |
| Synchronization | Internal Synchronization |
| Lens | |
| Horizontal Field of View | 108.1° to 45.6° |
| Menu | |
| D/N Mode | Auto/Color/BW (Black and White) |
| BLC | Support |
| AGC | Support |
| Digital WDR | Yes |
| WDR | Yes |
| Language | English |
| Function | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Out | 1 HD analog output |
| General | |
| Material | Metal |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC ± 20%, 24 VAC ± 20% |
| Weather Proof | IP67 |
| IR Range | Up to 60m |
| Communication | Up the coax |
| Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) | |
| Dimension | 134.3 mm × 123.86 mm × 110.24 mm (5.29" × 4.88" × 4.34") |
| Weight | Approx. 620 g (1.37 lb.) |
Hikvision DS 2CE79U7T AIT3ZF AHD Dome Kamera Pdf Dosyası747.23 KB
