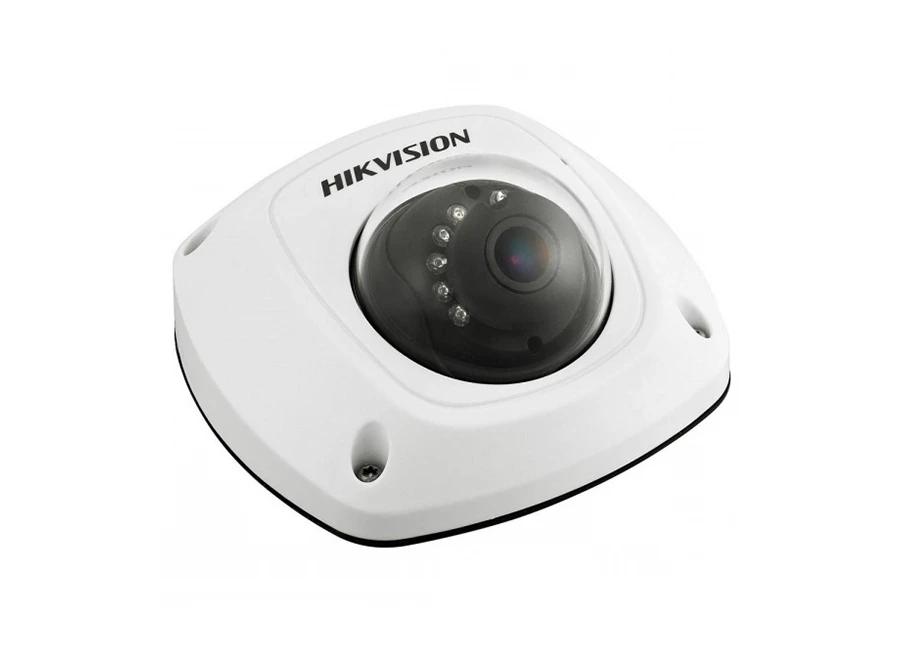

Hikvision DS 2CS54A1N IRS AHD Dome Kamera

Compact design
DIS sensor
Auto white balance, auto gain control and electronic shutter control
OSD menu
IR cut filter with auto switch
Built-in microphone
Internal Synchronization
3-axis (pan/tilt/rotation) positioning allows adjustment for optimum surveillance angles and position
Impact Protection: IEC60068-2-75 test, Eh, 50J; EN50102, up to IK07

Camera
Image Sensor	1/3” DIS
Signal System	PAL/NTSC
Effective Pixels	976(H)×496(V)
Shutter Time	1/50(1/60)s to 1/10,000s
Lens Mount	M12
Adjustment Range	Pan: 0 ± 30°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day& Night	IR cut filter with auto switch
Horizontal Resolution	700 TVL
Synchronization	Internal Synchronization
Video Output	1Vp-p Composite Output (75Ω/BNC)
S/N Ratio	More than 62 dB
Menu
Auto Gain	Low/Middle/High/Off
D/N Mode	Auto/ Color/ BW/ Smart
Language	English/Chinese
Function	Brightness, Contrast, Sharpness, Saturation, DNR, Mirror
Interface
Audio In	Built-in Microphone
Audio Out	1-ch BNC audio interface (line level, 1kΩ)
General
Operating Conditions	-40 °C - 60 °C (-40 °F - 140 °F)
Operating Conditions	Humidity 90% or less (non-condensing)
Power Supply	12 V DC±10%
Weather Proof	IP65
IR Range	Up to 20m
Dimension	97 × 46.6 × 99.5mm (3.82” × 1.83” × 3.92”)
Weight	300 g(0.66 lbs)
