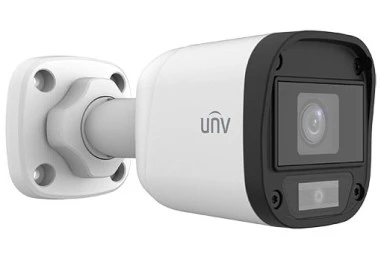

Uniview UAC-B112-F28 AHD Bullet Kamera
Özellikler
- 2MP high quality image
- TVI/AHD/CVI/CVBS
- IR-cut filter with auto switch (ICR)
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
Teknik Özellikler
| Sensor | |
| Pixel | 2MP |
| Size | 1/3" |
| Minimum illumination | 0.02 lux (F2.0, AGC ON) |
| 0.00 lux (IR on) | |
| Lens | |
| Lens | 2.8mm |
| Lens mount | M12 |
| Angle of view | H: 90.5° V: 49.6° D: 109.5° |
| Illuminator | |
| Illuminator | One IR illuminator |
| Illumination distance | 20m |
| Lifetime | ≥60,000 hours |
| Video | |
| Resolution | 1080P: 1920(H)×1080(V) |
| 720P: 1280(H) ×720(V) | |
| Frame rate | TVI/AHD/CVI: 1080P@30fps, 1080P@25fps; 720P@30fps, 720P@25fps |
| CVBS: PAL, NTSC | |
| Shutter time | PAL: 1/25s-1/50000s |
| NTSC: 1/30s–1/50000s | |
| Image | |
| Exposure mode | 4 modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 3 modes: Auto (default), Day, Night |
| Digital noise reduction | 2D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal flip, 180° vertical flip. |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating environment | |
| Temperature | -30℃ to 60℃(-22℉ to 140℉) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4KV |
| Ingress protection | IP67 |
| General | |
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 2.88W |
| Mount | 3D bracket supplied, surface mount (default), optional backbox, pole mount bracket |
| Dimensions | 142mm*63mm*65mm (L*W*H) |
| Material | Plastic |
| Weight | 135g(0.30lb) |
Uniview UAC-B112-F28 AHD Bullet Kamera Pdf Dosyası673.13 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
Irled : Var
