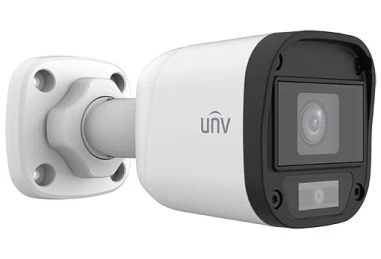

Uniview UAC-B115-F28-W AHD Bullet Kamera
Özellikler
- 5MP high quality image
- TVI/AHD/CVI/CVBS
- Supports white light illumination, 24/7 full-color imaging
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
Teknik Özellikler
| Sensor | |
| Pixel | 5MP |
| Size | 1/2.7" |
| Minimum illumination | 0.02 lux (F1.6, AGC ON) |
| 0.00 lux (white light on) | |
| Lens | |
| Lens | 2.8mm |
| Lens mount | M12 |
| Angle of view | H: 110.0° V: 57.0° D: 130.0° |
| Illuminator | |
| Illuminator | One white-light illuminator |
| Illumination distance | 20m |
| Lifetime | ≥60,000 hours |
| Video | |
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); : 2592(H)×1944(V) |
| 4MP: 2560(H)×1440(V) | |
| 1080P: 1920(H)×1080(V) | |
| Frame rate | TVI: 5MP@20fps, , 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps |
| AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps | |
| CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps | |
| CVBS: PAL/NTSC | |
| Shutter time | PAL: 1/25s-1/50000s |
| NTSC: 1/30s–1/50000s | |
| Image | |
| Exposure mode | 4 modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 full-color imaging |
| Digital noise reduction | 2D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating environment | |
| Temperature | -30℃ to 60℃(-22℉ to 140℉) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4KV |
| Ingress protection | IP67 |
| General | |
| Power | DC12V (±25%), with reverse polarity protection and surge protection, Max 2.4W |
| Mount | 3D bracket supplied, surface mount (default), optional backbox, pole mount bracket |
| Dimensions | 142mm*63mm*65mm (L*W*H) |
| Material | Plastic |
| Weight | 145g(0.32lb) |
| Certification | CB, CE, FCC |
Uniview UAC-B115-F28-W AHD Bullet Kamera Pdf Dosyası676.84 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 5.14MP
Irled : Var
