Özellikler
- 650 TV Lines excellent high horizontal resolution
- High Sensitivity of 0,01 Lux
- High Light Compensation (Conversion of peaklight into greyscale)
- ATR (Adaptive Tone-curve Reproduction) Pixel-to pixel based tone-curve correction optimizes the contrast of image similar to WDR. ATR mode makes low luminance area brighter and
- high luminance area darker.
- Power Input AC 100 - 240V
Teknik Özellikler
- Image Sensor: 1/3" CCD Sony 960H Super HAD II
- Scanning System: PAL, 50Hz, 625L (V), 2:1 Inter Line Transfer
- Pixels - Effective: 976(H) x 582(V)
- Resolution: 650 (H) lines
- Col/B&W: Auto (Electronic) / Color / B/W / External
- Sensitivity Colour: 0.01 Lux (50IRE) @ F1.2
- S/N Ratio: >52dB (AGC off)
- Lens Mount: C/CS mount with adaptor
- Lens Drive Type: Auto iris (DC)
- Number of Privacy Zones: 15 (polygonal method)
- High Speed Shutter: 1/50 ~ 1/100.000 sec, auto
- BLC Back Light: BLC / HLC / off
- AGC: 6~44.8dB
- Digital Noise Reduction (DNR): On/Off (1~6 level)
- Additional Features: H Reverse, High Light Compensation
- Motion Detection: On/Off
- OSD: Yes (DE,EN,FR,IT,RU,TR)
- Camera ID: 52 character over 2 lines
- White Balance: ATW/PUSH/Anti CR/Manual/User 1/User 2
- Remote Control: Coaxitron, data on coax cable
- Video Outputs: 1x CVBS (1Vpp), BNC
- Humidity: less than 90%, non condensing
- Operating Temperature: -25°C ~ +55°C
- Supply Voltage: 100 ~ 240 Vac, 50/60Hz
- Power Consumption: 3 W
- Weight: 0.33 kg
- Dimensions w*h*d: 69 x 55 x 120.5 mm

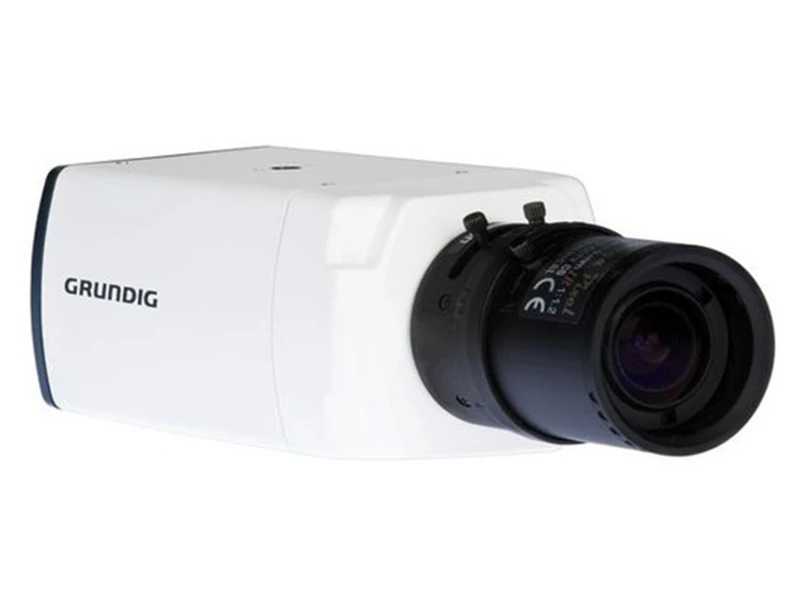

Grundig GCA B1002B Box Kamera PDF Dosyası163.21 KB
