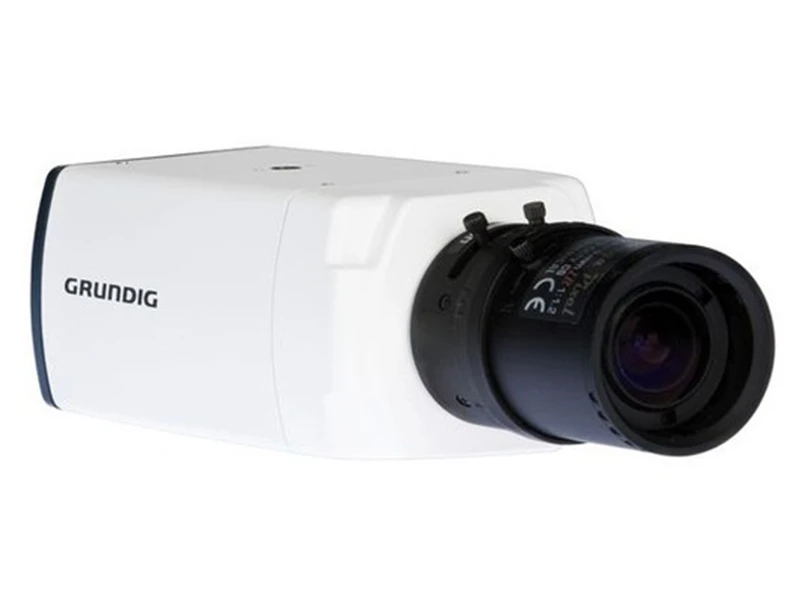

Grundig GCA B1305B Box Kamera
Özellikler
- Digital Noise Reduction (DNR), Digital Image Stabilization (DIS),
- On Sreen Menu (OSD), Privacy Zone Masking,
- Remote Control Interface, H/V-Reverse
- 650 TV Lines (colour), 700 TV Lines (B/W) excellent high horizontal resolution
- High Sensitivity of 0,001 Lux
- WDR function, Colour/B&W function with removable IR cut filter
- High Light Compensation (Conversion of peaklight into greyscale)
- Power Input AC24V/DC12V
Teknik Özellikler
- Image Sensor: 1/3" CCD Sony 960H Super HAD II, Dual Shutter
- Scanning System: PAL, 50Hz, 625L (V), 2:1 Inter Line Transfer
- Pixels - Effective: 976(H) x 582(V)
- Resolution: 650 (H) lines colour, 700 (H) lines b&w
- Col/B&W: On/Off/Auto/Ext, IR-cut filter removable (ICR)
- Sensitivity Colour: 0.01 Lux (50IRE) @ F1.2
- Sensitivity B&W: 0.001 Lux (50IRE) @ F1.2
- S/N Ratio: >52dB (AGC off)
- Lens Mount: C/CS mount with adaptor
- Lens Drive Type: Auto iris (DC)
- Sens Up: Off ~ x512, auto
- Motion Detection: On/Off
- Number of Privacy Zones: 15 ea
- Wide Dynamic Range: 120 dB
- High Speed Shutter: 1/50 ~ 1/10.000 sec, auto
- BLC Back Light: BLC / HLC / off
- AGC: 6~44.8dB
- Digital Noise Reduction (DNR): On/Off (1~6 level)
- Digital Image Stabilization (DIS): Off/On
- Additional Features: H/V Reverse, High Light Compensation, E-Zoom
- OSD: Yes (DE,EN,FR,IT,RU,TR)
- Camera ID: 52 character over 2 lines
- White Balance: ATW/PUSH/Anti CR/Manual/User 1/User 2
- Remote Control: Coaxitron, data on coax cable
- Video Outputs: 1x CVBS (1Vpp), BNC
- Humidity: less than 90%, non condensing
- Operating Temperature: -25°C ~ +55°C
- Supply Voltage: 12 Vdc / 24 Vac
- Power Consumption: 3 W
- Weight: 0.33 kg
- Dimensions w*h*d: 69 x 55 x 120.5 mm
