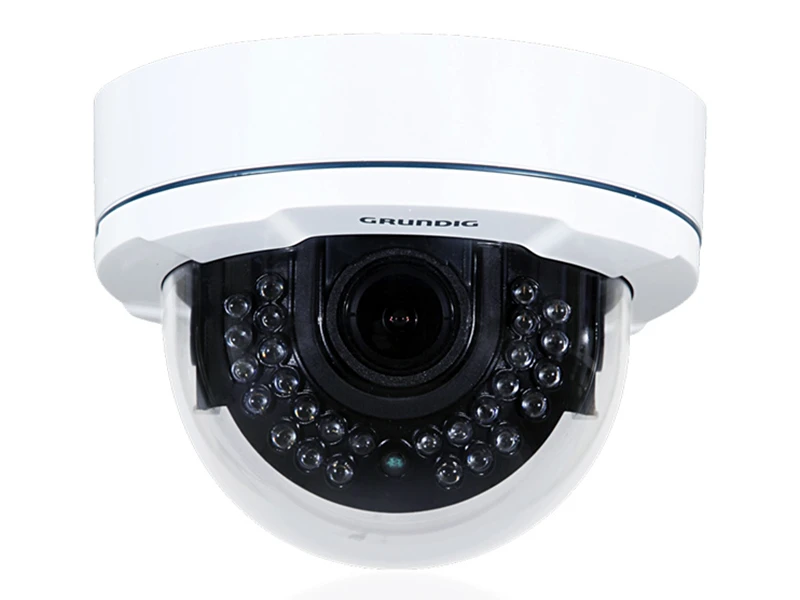

Grundig GCA B4326V Dome Kamera
Özellikler
- Vandal Resistant Dome (IK10)
- Varifocal Lens: f = 2.8 - 12 mm, auto iris
- Fast & easy Zoom/Focus adjustment mechanic
- 3 Axis Gimbal, 2 ways to mount: Wall/Ceiling Flat and Flush
- Built-in Service Monitor Port & OSD Control Port
- Video Enhancement: BLC, HLC, DNR
- Extended Temperature range -25°C ~ +55°C
- Support Dual Power AC24V/DC12V
Teknik Özellikler
- Image Sensor: 1/3" CCD Sony 960H Ex-view HAD II
- Scanning System: PAL, 50Hz, 625L (V), 2:1 Inter Line Transfer
- Pixels - Effective: 976(H) x 582(V)
- Resolution: 650 (H) lines colour, 700 (H) lines b&w
- Col/B&W: Auto, Color, Removable IR-Cut Filter (ICR)
- Sensitivity Colour: 0.8 lux(50IRE)@F1.4 (SensUp=0, AGC Off)
- Sensitivity B&W: 0 Lux LED IR on
- High Speed Shutter: 1/50 ~ 1/10.000 sec, auto
- S/N Ratio: >52dB (AGC off)
- Lens Focal Length: 2.8 ~ 12 mm
- Horizontal Viewing Angle: 97° (Wide) ~ 24° (Tele)
- Lens Drive Type: Auto iris (DC)
- Iris F-Number: F= 1.4 ~ 360
- Motion Detection: On/Off
- Number of Privacy Zones: 15 (polygonal method)
- BLC Back Light: BLC / HLC / off
- AGC: 6~44.8dB
- Digital Noise Reduction (DNR): On/Off (1~6 level)
- OSD: Yes (DE,EN,FR,IT,RU,TR)
- Camera ID: 52 character over 2 lines
- White Balance: ATW/Push/User1/User2/AntiCR/Manual/Push Lock
- IR LED: 28 pcs.
- Optical Wavelength: 850 nm
- Max. IR Distance: 15/30 m (according to scene reflexion)
- Protection Rating: IP67/IK10
- Video Outputs: 1 CVBS 1 Vpp (BNC) & 1 test monitor out
- Accessories included: Multi-Language Manual, Template, Cable for Service Monitor, Screws, screw driver for Zoom and Focus adjustment
- Humidity: less than 90%, non condensing
- Operating Temperature: -25°C ~ +55°C
- Supply Voltage: 24 Vac / 12 Vdc
- Power Consumption: 2.4 (5.8 LED on) W
- Weight: 1.1 kg
- Dimensions w*h*d: Ø 150 x 124 mm
Grundig GCA B4326V Dome Kamera PDF Dosyası237.21 KB
