Açıklama

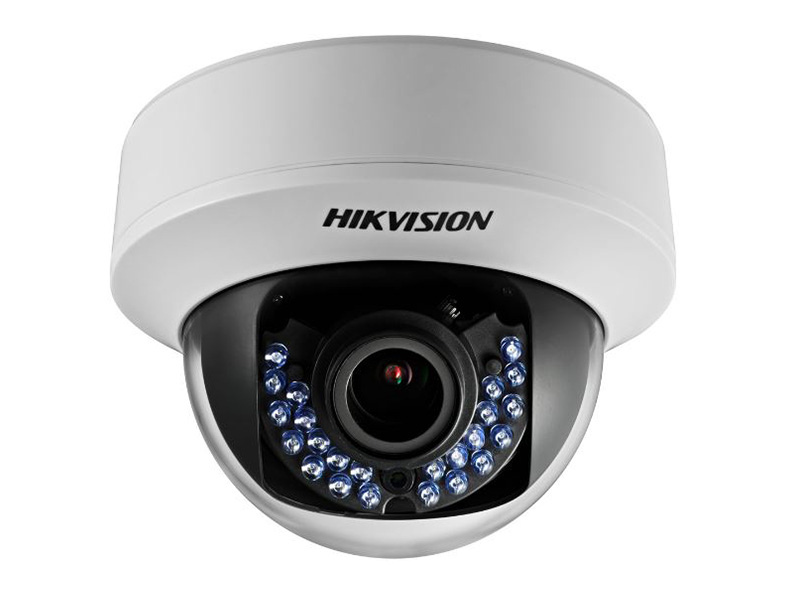

Hikvision DS 2CE56D5T AVPIR3 AHD Dome Kamera
Özellikler
- HD1080P Video Output
- Adopt HDTVI Technology
- True Day/Night
- 2.8 - 12mm vari-focal lens
- OSD menu, 3D DNR, Smart IR
- Up to 40m IR distance
- IP66 weatherproof & Vandal Proof
- Up the Coax(via coaxial cable)
- 120 dB Wide Dynamic Range
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1944(H)×1092(V) |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR | |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8-12mm @ F1.4 |
| Angle of view: 103° - 32.1° | |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120dB |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
| S/N Ratio | More than 62 dB |
| Up the Coax | Support |
| Menu | |
| Camera ID | On/off (15 characters, position programmable) |
| D/N Mode | Color/ BW/ EXT |
| Auto White Balance | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
| Private Mask | On/Off, maximum 8 zones |
| Motion Detection | On/Off, maximum 4 zones |
| BLC | On/Off |
| AGC | Support |
| Anti-flicker | On/ Off |
| Language | English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
| Function | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel |
| correction, SMART D-ZOOM | |
| Scene | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15% |
| -A: 12 VDC±15%, 24 VAC±15% | |
| Power Consumption | Max. 4W |
| -A: Max. 6W | |
| Impact Protection | IK10. |
| Weather Proof | IP66 |
| IR Range | Up to 40m |
| Dimension | φ145.3 × 124.2 mm (φ5.72” × 4.89”) |
| Weight | 1300 g |
Hikvision DS 2CE56D5T AVPIR3 AHD Dome Kamera Pdf Dosyası410.48 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
