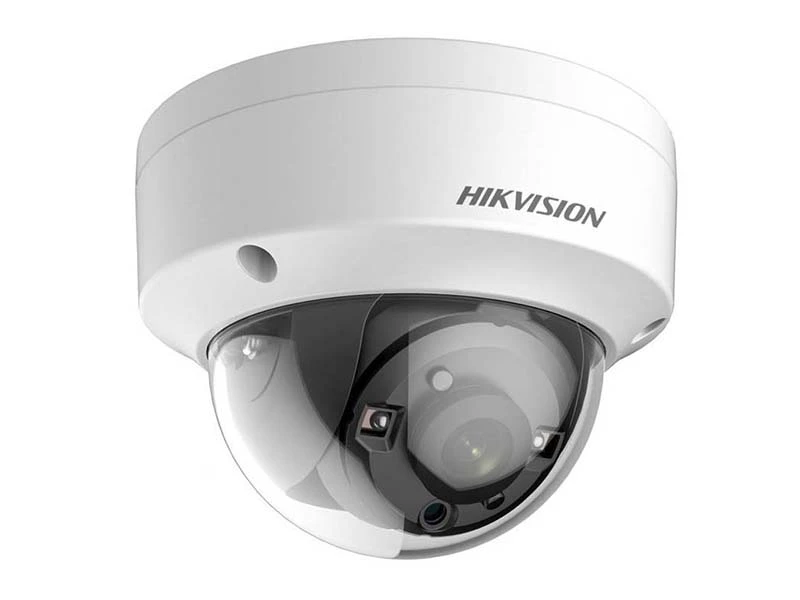

Hikvision DS 2CE56H5T VPIT HD TVI Dome Kamera
Özellikler
- 5 Megapixel high-performance CMOS
- Analog HD output, up to 5MP resolution
- 2.8mm, 3.6mm, 6mm fixed focal lens
- True Day/Night
- OSD menu, DNR, Smart IR
- EXIR technology, up to 20m IR distance
- IP67 weatherproof
- Up the Coax(HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor | 5MP CMOS Image Sensor |
| Effective Pixels | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8 mm 3.6 mm, 6 mm fixed focal lens |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate: | 2560 × 1944 @ 20fps |
| HD Video Outpu | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Menu | |
| D/N Mode | Auto / Color / B/W |
| Auto White Balance | Auto/MWB |
| BLC | Support |
| AGC | Support |
| Language | English/Chinese |
| Function | Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±25% |
| Power Consumption | Max. 3 W |
| Impact Protection | IK10. |
| Weather Proof | IP67 |
| IR Range | Up to 20m |
| Dimension | Φ 111 mm × 82.4 mm (Φ 4.4" × 3.2") |
| Weight | Approx. 350 g ( 0.77 lb.) |
Hikvision DS 2CE56H5T VPIT HD TVI Dome Kamera Pdf Dosyası888.85 KB
