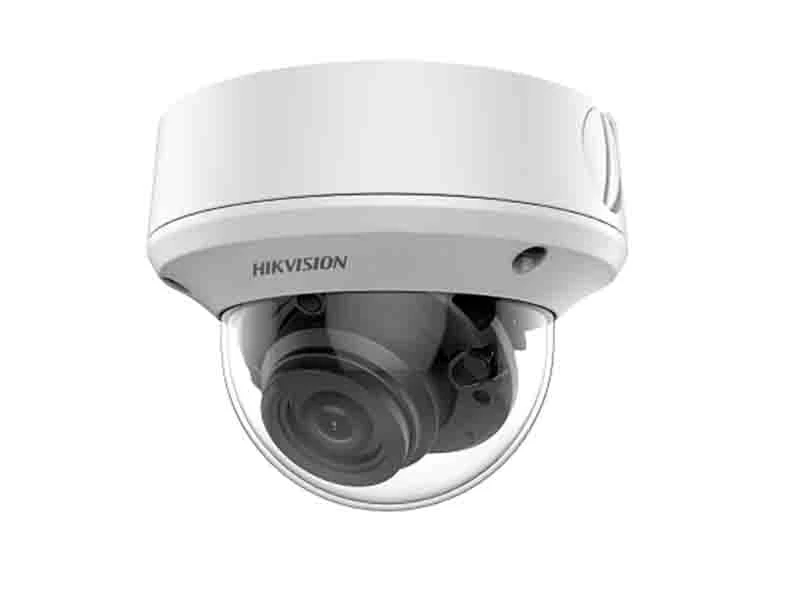

Hikvision DS 2CE5AH0T AVPIT3ZF HD TVI Dome Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 5MP CMOS Image Sensor |
Effective Pixels | 2560 (H) × 1944 (V) |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens Mount | φ14 |
Adjustment Range | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° |
Day& Night | IR cut filter with auto switch |
Video Frame Rate | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps; NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
HD Video Output: | 1 Analog HD output |
Synchronization | Internal Synchronization |
Menu | |
D/N Mode | Auto / Color / B/W |
Auto White Balance | Auto/MWB |
BLC | Support |
AGC | Support |
General | |
Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC±15%, 24 VAC±15% |
Impact Protection | IK10. |
Weather Proof | IP67 |
IR Range | Up to 40m |
Communication | Up the coax |
Protocol: HIKVISION-C(Coaxitron) | |
Dimension | Ø 145 mm × 111.3 mm ( Ø 5.70" × 4.37") |
Weight | DS-2CE5AH0T-VPIT3ZF: Approx. 815 g (1.80 lb.) |
DS-2CE5AH0T-AVPIT3ZF: Approx. 860 g (1.90 lb.) |
Hikvision DS 2CE5AH0T AVPIT3ZF HD TVI Dome Kamera Pdf Dosyası961.43 KB
