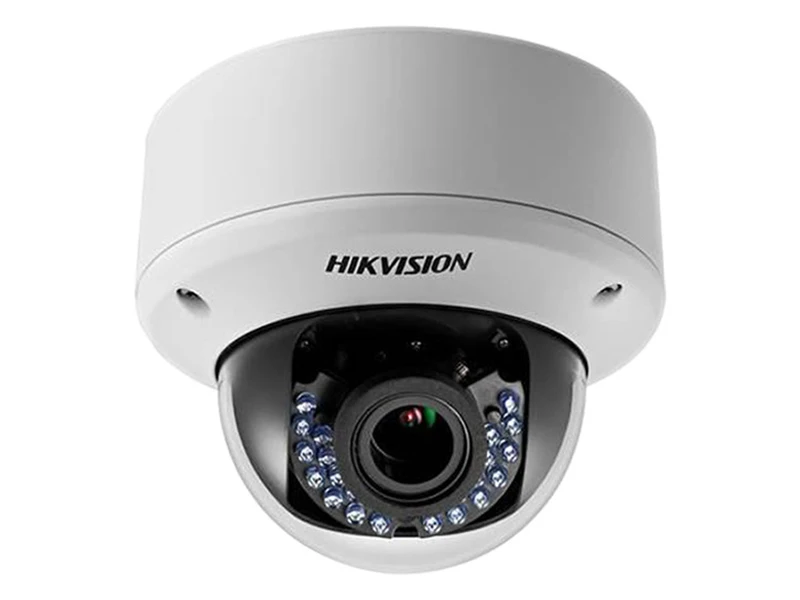

Haikon DS 2CE56D1T VPIR3 HD TVI Dome Kamera
Özellikler
Teknik Özellikler
| Image Sensor: 1/3" progressive scan CMOS |
| Signal System: PAL / NTSC |
| Effective Pixels (H x V): 1930 x 1088 |
| Maximum Image Resolution: 1920 x 1080 |
| Minimum Illumination: Color: 0.034 @ f/2.2,B&W: 0.0034 @ f/2.2, 0 with IR |
| Shutter Time: 1 / 25 (1 / 30) s to 1 / 50,000 s |
| Lens: 2.8 to 12 mm @ f/1.4 |
| Angle of View: 90° |
| Lens Mount: φ14 |
| Day & Night: ICR (Infrared Cutfilter Removal) |
| Angle Adjustment: Pan: 0 to 360° Tilt: 0 to 90° Rotation: 0 to 360° |
| Synchronization: Internal synchronization |
| Video Frame Rate: 1080p @ 25 fps / 1080p @ 30 fps |
| HD Video Output: 1 x Analog HD output |
| S / N Ratio: More than 52 dB |
| AGC (Automatic Gain Control): Support |
| Day/Night Mode: Color / B&W / EXT |
| White Balance: Auto / Manual |
| Motion Detection: On / Off, maximum 4 zones |
| Language: English / Chinese |
| Working Temperature: -40 to 140°F (-40 to 60°C) |
| Humidity: 90% or less (non-condensing) |
| Power Supply: 12 VDC |
| Power Consumption: Maximum 3 W |
| Impact Protection: IK10 |
| IR Range: 66' (20 m) |
| Communication: Up the coax, Protocol: HIKVISION-C (Coaxitron) |
| Dimensions: Ø4.4 x 3.2" (Ø111.7 x 81.2 mm) |
| Weight: 1.2 lb (0.5 kg) |
Haikon DS 2CE56D1T VPIR3 HD TVI Dome Kamera Pdf Dosyası560.52 KB
