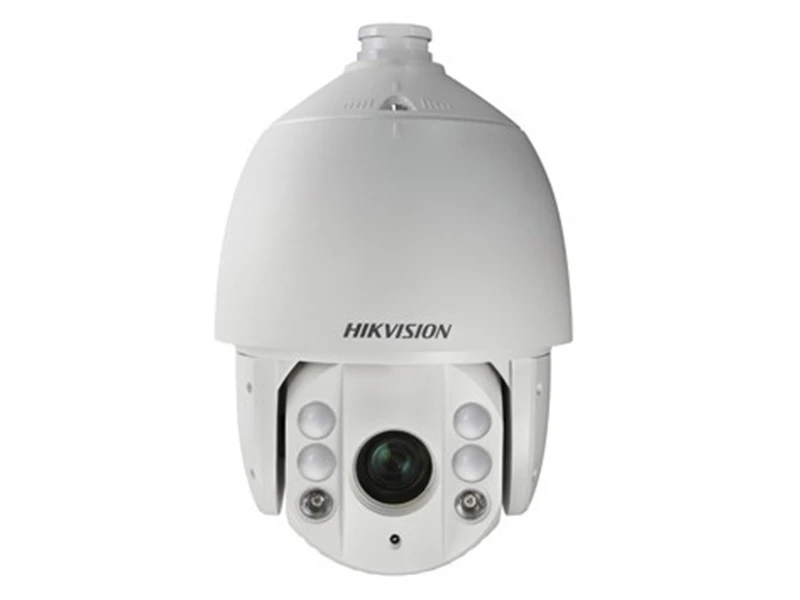

Haikon DS 2AE7168N A Analog Speed Dome Kamera
Özellikler
- 1/4" Sony CCD
- 36x optical zoom
- 700TVL high resolution
- Up to 100m IR range
- 3D DNR, D WDR
- IP66 rating
- 3D intelligent positioning
Teknik Özellikler
Camera | |
Image Sensor: | 1/4" SONY CCD |
Effective Pixels: | NTSC:976(H)×494(V) |
Horizontal Resolution: | Color: 700 TVL |
B/W: 750 TVL | |
Signal System: | NTSC |
Min.illumination: | 0.02Lux/(F1.6, AGC ON), 0.0008Lux /(F1.6, AGC ON, sensitivity×256) (color) |
0.002Lux/(F1.6, AGC ON), 0.00008Lux /(F1.6, AGC ON, sensitivity×256)(B/W) | |
Lux with IR | |
White Balance: | Auto / Manual / ATW / Indoor / Outdoor |
AGC: | Auto/Manual |
S/N Ratio: | ≥ 50dB |
DNR: | 3D DNR |
WDR: | 128x (on / off / auto) |
Shutter time: | NTSC: 1-1/10,000s |
Day&Night: | ICR |
Digital Zoom: | 16x |
Focus Mode: | Auto / Semi-automatic / Manual |
Lens | |
Focal Length: | 3.3-119mm, 36X |
Zoom Speed: | Approx.6 s(Optical Wide-Tele) |
Angle of View: | 57.1-1.7 degree(Wide-Tele) |
Minimum Working Distance: | 10-1000mm (Wide-Tele) |
Aperture Range: | F1.4-F3.7 |
Pan & Tilt | |
Pan Range: | 360° endless |
Pan Speed: | Pan Manual Speed: 0.1°-160°/s, |
Pan Preset Speed: 240°/s | |
Tilt Range: | -15°-90° (Auto Flip ) |
Tilt Speed: | Tilt Manual Speed: 0.1°-120°/s, |
Tilt Preset Speed: 200°/s | |
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples |
Number of Preset: | 256 |
Patrol: | 8 patrols, up to 32 presets per patrol |
Pattern: | 4 patterns, with the total recording time not less than 10 minutes |
Power-off Memory: | Support |
Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
PTZ Position Display: | ON/OFF |
Compass: | Support , the north can be set |
Scheduled Task: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
Infrared | |
IR Range: | 100m |
IR irradiation angle: | Adjustable by zoom |
Input & Output | |
Monitor Output: | 1.0V[p-p] / 75Ω, NTSC composite, BNC |
General | |
Menu Language: | English / Chinese |
RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
Power Supply: | 24VAC(for –A moel); 12VDC(for –D model) |
Power Consumption: | Max.30W(IR LED On, Heater On) |
Max.24W(IR LED On) | |
Max.15W(IR LED Off, Heater Off) | |
Working Temperature /Humidity: | -30°C-65°C(-22°F-149°F)(outdoor dome) |
90% or less | |
Protection Level: | IP66 standard (outdoor dome) |
TVS 4,000V lightning protection, surge protection and voltage transient protection | |
Mounting: | Various mounting modes option |
Dimensions: | Φ245 ×399mm (Φ9.65” ×15.71” ) (Outdoor) |
Weight(approx.): | 5.5kg(12.13lbs) |
Haikon DS 2AE7168N A Analog Speed Dome Kamera Pdf Dosyası443.29 KB
