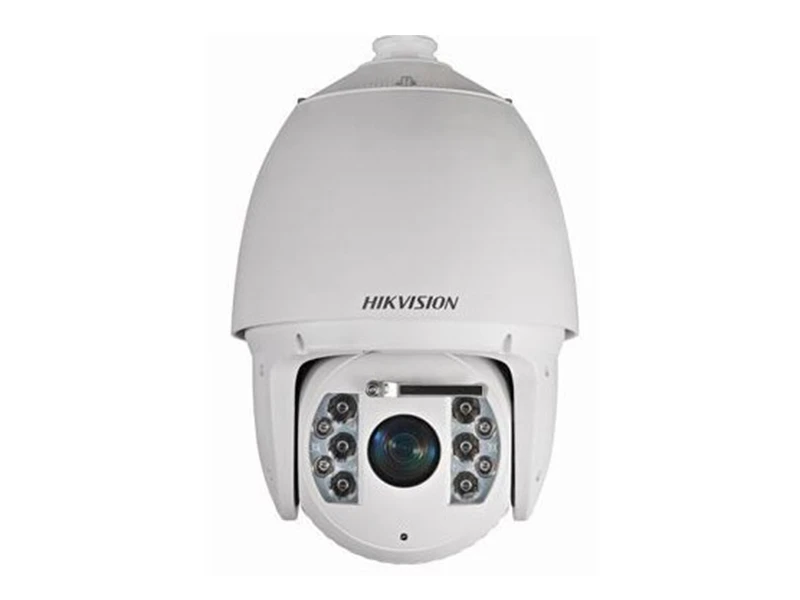

Haikon DS 2AF7264N AW Analog Speed Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor: | 1/3" Sony Interline Transfer Exview HAD-II CCD |
| Effective Pixels: | NTSC:976(H)×494(V) |
| Horizontal Resolution: | Color: 700 TVL |
| B/W: 750 TVL | |
| Signal System: | NTSC |
| Min.illumination: | Color: 0.02Lux/(F1.6, AGC ON),0.0008Lux /(F1.6, AGC ON, IRE×256) |
| B/W: 0.002Lux/(F1.6, AGC ON),0.00008Lux /(F1.6, AGC ON, IRE×256) | |
| Lux with IR | |
| White Balance: | Auto / Manual / ATW / Indoor / Outdoor |
| AGC: | Auto/Manual |
| S/N Ratio: | ≥ 50dB |
| DNR: | 3D DNR |
| BLC: | ON/OFF |
| Shutter time: | NTSC: 1/4 ~ 1/10,000s |
| Day&Night: | ICR |
| Digital Zoom: | 16x |
| Focus Mode: | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length: | 4.0-92mm, 23X |
| Zoom Speed: | Approx.4.4s(Optical Wide-Tele) |
| Angle of View: | 57.58°-3.12°(Wide-Tele) |
| Minimum Working Distance: | 10-1500mm (Wide-Tele) |
| Aperture Range: | F1.6 - F3.7 |
| Pan & Tilt | |
| Pan Range: | 360° endless |
| Pan Speed: | Pan Manual Speed: 0.1° -160°/s, |
| Pan Preset Speed: 240°/s | |
| Tilt Range: | -2°-90° (Auto Flip ) |
| Tilt Speed: | Tilt Manual Speed: 0.1°-120°/s, |
| Tilt Preset Speed: 200°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | 256 |
| Patrol: | 8 patrols, up to 32 presets per patrol |
| Pattern: | 4 patterns, with the total recording time not less than 10 minutes |
| Power-off Memory: | Support |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
| PTZ Position Display: | ON/OFF |
| Freeze Frame: | Support |
| Password Protection: | Support |
| Zone Scanning/Display: | Scanning within programmed zone, display zone title |
| Camera Title: | Programmable title display |
| Compass: | Support , the north can be set |
| Scheduled Task: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| RS-485 communication diagnosis: | Support |
| Manchester code communication diagnosis: | Support |
| Smart-tracking: | Support |
| Infrared | |
| IR Range: | 150m |
| IR irradiation angle: | Adjustable by zoom |
| Alarm | |
| Alarm Input: | 2 inputs(7 inputs optional) |
| Alarm Output: | 2 relay outputs, alarm response actions option |
| Input & Output | |
| Monitor Output: | 1.0V[p-p] / 75Ω, NTSC composite, BNC |
| General | |
| Menu Language: | English / Chinese |
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Power Supply: | 24V AC |
| Power Consumption: | Max. 52W |
| Working Temperature /Humidity: | -30 ℃-65℃(-22℉-149℉)(outdoor dome) |
| 90% or less | |
| Protection Level: | IP66 standard (outdoor dome) |
| TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Wiper: | Support |
| Mounting: | Various mounting modes option |
| Dimensions: | Φ245 ×399mm (Φ9.65” ×15.71” ) (Outdoor) |
| Weight(approx.): | 5.5kg(12.13Ibs) |
Haikon DS 2AF7264N AW Analog Speed Dome Kamera Pdf Dosyası1.19 MB
