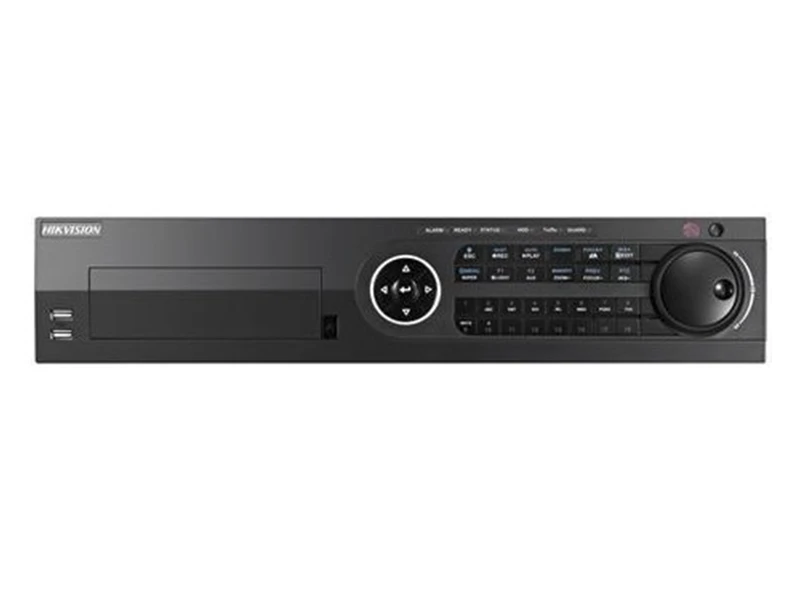

Haikon DS 8116HUHI F8 N Turbo HD DVR Kayıt Cihazı

H.264 ,H.264+& Dual-stream video compression
Support HD-TVI, IPC,AHD and analog cameras with adaptive access
Support Cloud storage(One Drive, Google Drive or Drop Box)
Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
Long transmission distance over coax cable
Up to 16-ch synchronous playback at 3MP resolution
playback at up to 256X speed.
Support POS functions.
Raid 1/0/5/10
Dual network ports

Video/Audio Input
Analog and HD-TVI video input:	16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:	Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
	Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
	support CVBS input
Video/Audio Output
CVBS Output:	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
Frame Rate:	Main stream:3 MP@15fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
	Sub-stream:WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N)
Network management
Remote connections:	128
Network protocols:	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
General
Power Supply:	100 to 240 VAC
Consumption:	≤ 65W(without hard disks)
Working Temperature:	-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity:	10% ~ 90%
Dimensions:	445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch)
Weight:	≤ 8 kg (17.6lb)
