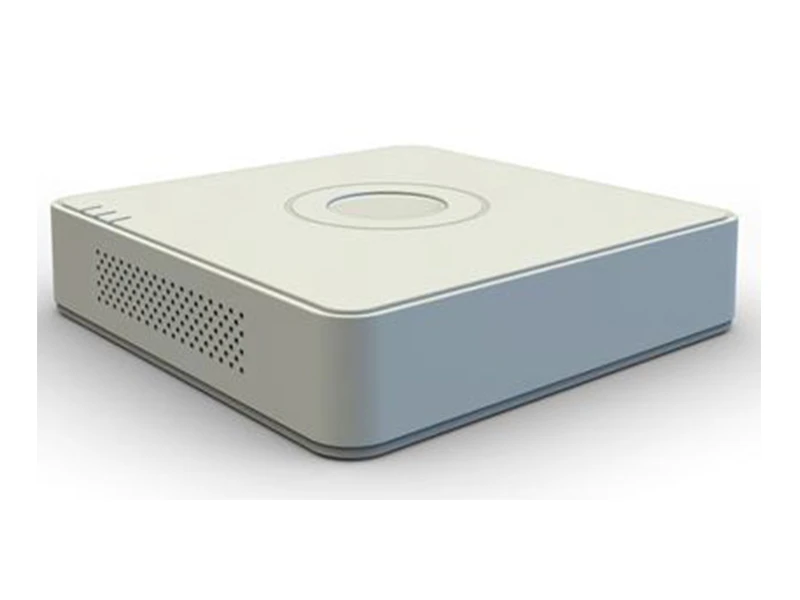

Hikvision DS 7116HQHI K1 Turbo HD DVR Kayıt Cihazı
Özellikler
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Up to 3 MP resolution for recording of channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1
- Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
- Up to 2-ch 4 MP IP cameras input
- Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
- 4/8/16-ch synchronous playback
Teknik Özellikler
Video/Audio Input | |
Audio Input | 1-ch |
Video Compression | H.265+/H.265/H.264+/H.264 |
Analog and HD-TVI video input | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types | 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 |
Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of | |
DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1. | |
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz | |
Support CVI input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz | |
support CVBS input | |
Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
Audio Compression | G.711u |
Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video/Audio Output | |
HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Recording resolution | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; |
When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF | |
Frame Rate | Main stream: |
When 1080p Lite mode not enabled: | |
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps | |
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
When 1080p Lite mode enabled: | |
3 MP@15fps | |
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
Video Bit Rate | 32 Kbps-6 Mbps |
Stream Type | Video/Video&Audio |
Audio Output | 1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate | 64kbps |
Dual Stream | Support |
Playback Resolution | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
Synchronous Playback | 16-ch |
Network management | |
Remote connections | 128 |
Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF |
Hard Disk Driver | |
Interface Type | 1 SATA Interface |
Capacity | Up to 6 TB capacity for each disk |
External Interface | |
Network Interface | 1; 10M / 100M self-adaptive Ethernet interface |
USB Interface | 2 USB 2.0 Interfaces |
General | |
Power Supply | 12V DC |
Consumption | ≤ 15 W(without hard disks) |
Working Temperature | -10 oC ~+55 oC (14 oF ~ 131 oF) |
Working Humidity | 10% ~ 90% |
Chassis | Mini 1U chassis |
Dimensions | 285 × 210 × 45 mm |
(11.2× 8.3 × 1.8 inch) | |
Weight | ≤ 1 kg (2.2 lb) |
