Açıklama

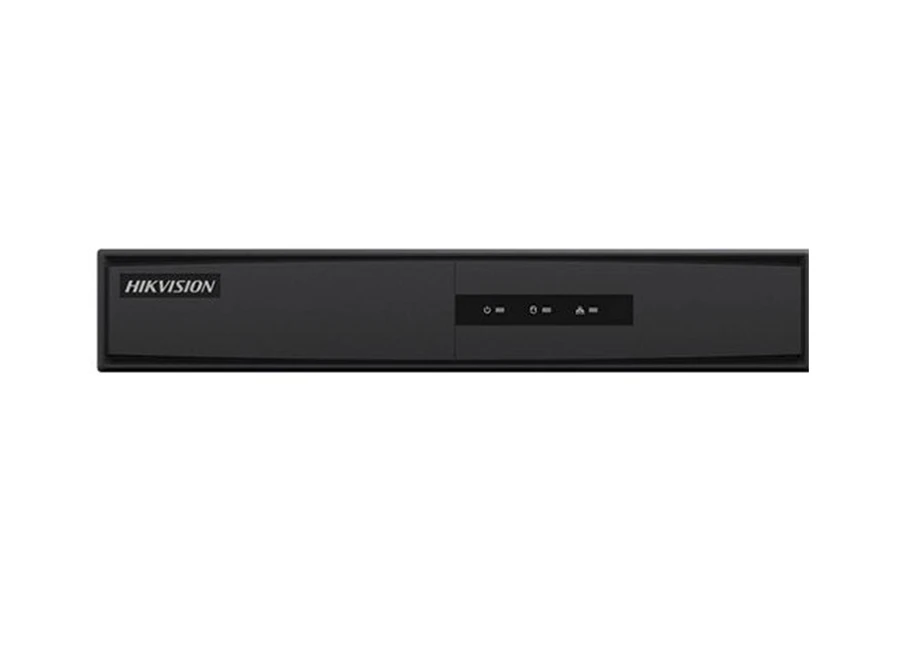

Hikvision DS 7216HGHI F1/N Turbo HD DVR Kayıt Cihazı

Video/Audio Input
Audio Input	1-ch
Video Compression	H.264,H.264+
Analog Video Input	16-ch
Analog and HD-TVI video input	1080p25, 1080p30, 720p25, 720p30
IP Video Input	2-ch (up to 18-ch)
Audio Compression	G.711u
Two-way Audio	1-ch RCA(2.0Vp-p, 1kΩ)
Video/Audio Output
HDMI/VGA Output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution	When 1080p lite mode not enabled 720p/WD1/4CIF/VGA/CIF
Encoding resolution	When 1080p lite mode enabled 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame Rate	Main stream
	When 1080p lite mode enabled
	1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
	When 1080p lite mode not enabled
	For 720p stream access
	720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
	For SD stream access
	WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
	Sub-stream
	CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate	32 Kbps ~ 4 Mbps
Stream Type	Video/Video&Audio
Audio Output	1-ch RCA(Linear, 1kΩ)
Audio Bit Rate	64kbps
Dual Stream	Support
Synchronous Playback	16-ch
Network management
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk Driver
Interface Type	1 SATA Interface
Capacity	Up to 6 TB capacity for each disk
External Interface
USB Interface	2 USB 2.0 Interfaces
General
Power Supply	12VDC
Consumption	≤ 20 W
Working Temperature	-10 ºC to +55 ºC (14 ºF to 131 ºF)
Working Humidity	10% to 90%
Dimensions	260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight	≤ 1.2 kg (2.6 lb)
