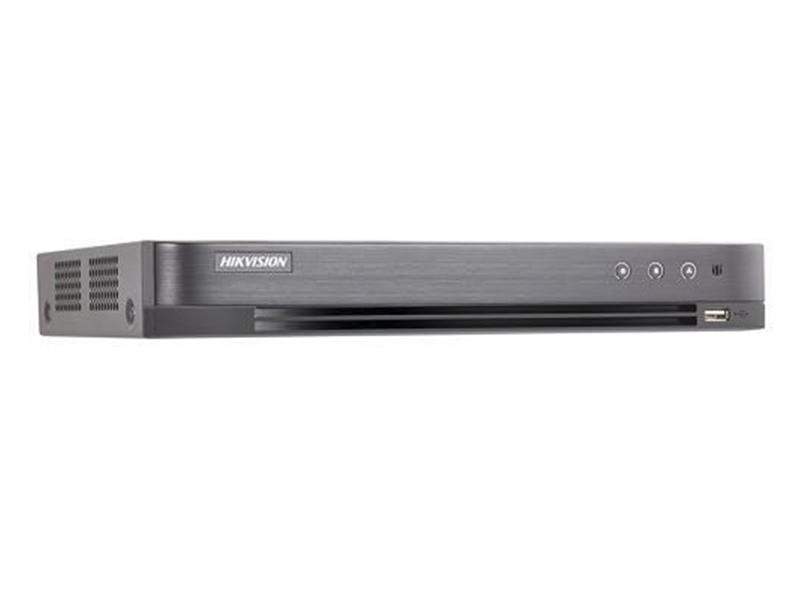

Hikvision DS 7216HQHI K1 Turbo HD DVR Kayıt Cihazı

Özellikler

H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Connectable to H.265+/H.265/H.264+/H.264 IP cameras
Up to 4MP lite resolution for recording
HDMI output at up to 4K (3840 × 2160) resolution for DS-7216HQHI-K1
Long distance transmission over UTP and coaxial cable
4/8/16-ch synchronous playback

Teknik Özellikler

Video/Audio Input
Audio Input	1-ch
Video Compression	H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input	16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types	Support HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
	Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
	Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
	Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
	Support CVBS input
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Audio Compression	G.711u
Audio Input Interface	RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
HDMI/VGA Output	VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA Output	HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording resolution	When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
Recording resolution	When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate	Main stream:
	When 1080p Lite mode not enabled:
	For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps
	(P)/30fps (N)
	For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
	For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	When 1080p Lite mode enabled:
	4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate	32 Kbps-6 Mbps
Stream Type	Video/Video&Audio
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output	1-ch RCA(Linear, 1kΩ)
Audio Bit Rate	64kbps
Dual Stream	Support
Playback Resolution	3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback	16-ch
Network management
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
Hard Disk Driver
Interface Type	1 SATA Interface
Capacity	Up to 6 TB capacity for each disk
External Interface
Network Interface	1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface	1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface	1; standard RS-485 serial interface, half-duplex
General
Power Supply	12 VDC
Consumption	≤ 25W(without hard disks)
Working Temperature	-10 oC to +55 oC (14 oF to 131 oF)
Working Humidity	10% to 90%
Dimensions	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight	≤ 2 kg (4.4 lb)
