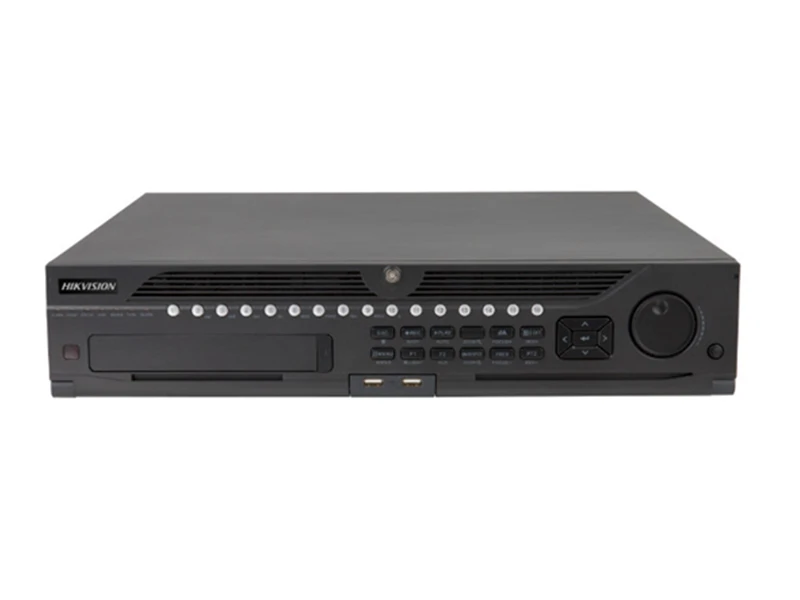

Hikvision DS 9016HUHI K8 Turbo HD DVR Kayıt Cihazı

Özellikler

H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Support Cloud storage(One Drive, Google Drive or Drop Box)
Up to 8MP resolution for recording
HDMI output at up to 4K (3840 × 2160) resolution
Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
16-ch synchronous playback
Supports POS triggered recording and POS information overlay

Teknik Özellikler

Video/Audio Input
Audio Input	16-ch
Video Compression	H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input	16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types	Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
	Support AHD input: 5MP,4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
	Support CVI input: 4 MP, 720p25, 720p30, 1080p25, 1080p30
	support CVBS input
IP Video Input	18-ch(up to 32ch) Up to 12MP resolution
Audio Compression	G.711u
Audio Input Interface	16-ch RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
HDMI2 Output	1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA Output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution	8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Video Loop Output	16-ch, BNC
Frame Rate	Main stream:
	8 MP@8fps; 5 MP@12fps; 4 MP@ 15fps; 3 MP@18fps;
	1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
	Sub-stream:
	WD1/4CIF/CIF@25fps (P)/30fps (N)
Stream Type	Video/Video&Audio
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent)
Audio Output	2-ch, RCA (Linear, 1 kΩ)
Dual Stream	Support
Playback Resolution	8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Synchronous Playback	16-ch
Network management
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF,SNMP
Hard Disk Driver
Interface Type	8 SATA Interfaces
Capacity	Up to 8 TB capacity for each disk
e-SATA Interface	1 eSATA interface
Disk Array
Array Type	RAID0, RAID1, RAID5, RAID6,RAID10
External Interface
Network Interface	2; 10M / 100M / 1000M self-adaptive Ethernet interfaces
USB Interface	2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Serial Interface	1 RS-232 serial interface
Serial Interface	1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface
Alarm Input	16-ch
Alarm Output	8-ch
General
Power Supply	100 to 240 VAC
Consumption	≤ 65W(without hard disks)
Working Temperature	-10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity	10% to 90%
Dimensions	440 × 470 × 90 mm (17.3 × 18.5 × 3.5 inch)
Weight	≤ 10 kg (22.0 lb)
