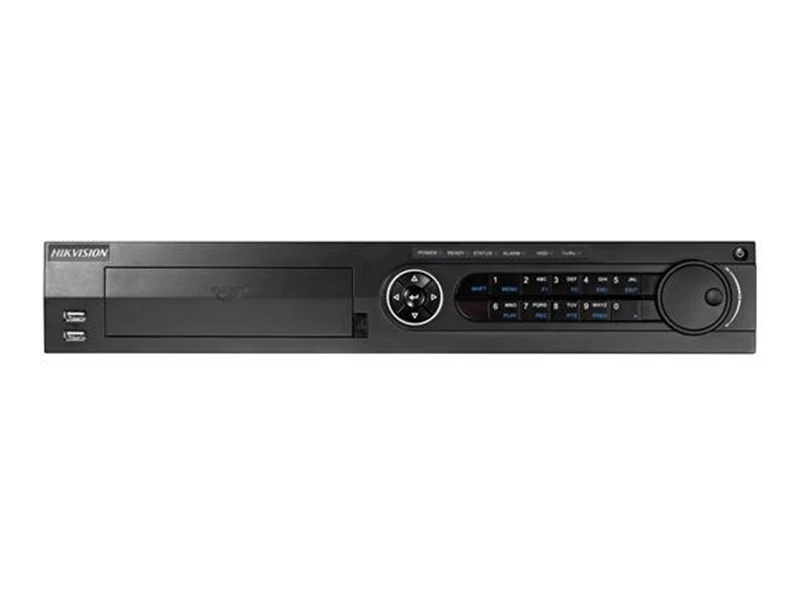

Hikvision DS 7332HQHI K4 Turbo HD DVR Kayıt Cihazı

Özellikler

H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Support Cloud storage(One Drive, Google Drive or Drop Box)
Up to 4MP resolution for recording
HDMI output at up to 4K (3840 × 2160) resolution
Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
4/8/16-ch synchronous playback
Supports POS triggered recording and POS information overlay

Teknik Özellikler

Video/Audio Input
Audio Input	4-ch
Video Compression	H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input	32-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types	Support HDTVI input: 4MP,3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
	Note: The 3 MP signal input is only available for channel 1/2/3/4.
	Support AHD input: 4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
	Support CVI input: 1080p25, 1080p30, 720p25, 720p30
	support CVBS input
IP Video Input	8-ch(up to 40ch) Up to 6MP resolution
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Audio Compression	G.711u
Audio Input Interface	4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
CVBS Output	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
HDMI/VGA Output	HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz
HDMI/VGA Output	VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Recording resolution	When 1080p Lite mode not enabled:
	4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
	When 1080p Lite mode enabled:
	4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate	Main stream:
	When 1080p Lite mode not enabled:
	For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
	For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps
	For 1080p stream access: 1080p/720p@15fps; 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
	For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
	When 1080p Lite mode enabled:
	For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps
	(N)
	For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps
	For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
	For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate	32 Kbps-6 Mbps
Stream Type	Video/Video&Audio
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent)
Audio Output	1-ch RCA(Linear, 1kΩ)
Dual Stream	Support
Playback Resolution	4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF
Synchronous Playback	16-ch
Network management
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
Hard Disk Driver
Interface Type	4 SATA Interfaces
Capacity	Up to 8 TB capacity for each disk
e-SATA Interface	1 eSATA interface
External Interface
Network Interface	1; 10M / 100M self-adaptive Ethernet interface
USB Interface	2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Alarm Input	16-ch
Alarm Output	4-ch
General
Power Supply	100 to 240 VAC
Consumption	≤ 45W(without hard disks)
Working Temperature	-10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity	10% to 90%
Dimensions	440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
Weight	≤ 7 kg (15.4 lb)
