Açıklama

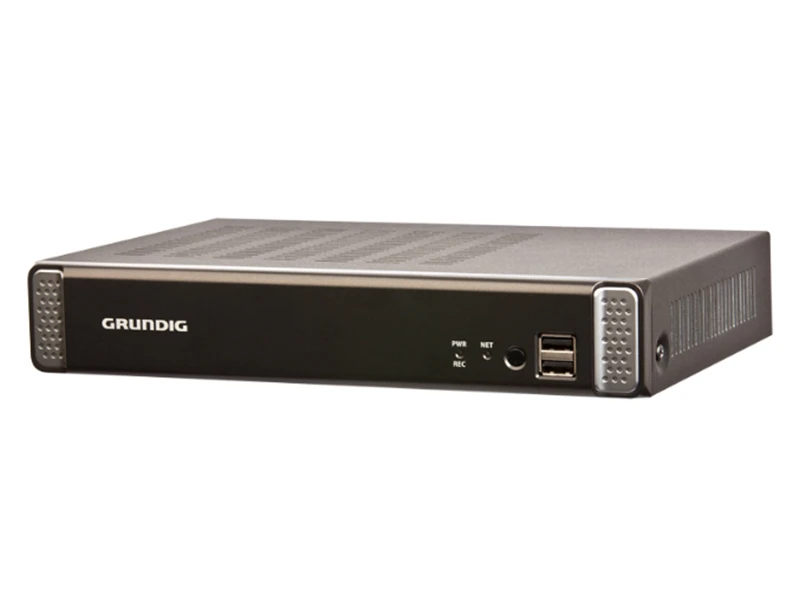

Grundig GRA D1104B DVR Kayıt Cihazı
Özellikler
- 4 Channel video 960H Real Time recording capability
- Spot Monitor with 4-Split View and editable Sequence Function
- USB, Remote & FTP Backup function
- Remote monitoring and control through network (LAN)
- Easy to use user interface
- Compatible to French law of August 2007 for quality in CCTV applications
- Fan-Less system
Teknik Özellikler
- Operating System: Embedded Linux
- Video Inputs: 4 CH Composite, BNC
- Video Outputs: 1 CVBS BNC (Spot), 1 HDMI, 1 VGA
- Max. Storage Capacity: 4 TB SATA
- Harddisk bay: 1 x SATA II
- Video Compression: H.264
- Recording Resolution: 960H (960x576), 4CIF (704x576), 2CIF (704 x 288), CIF (352x288)
- Recording Speed: 100fps (352x288), 100fps (704x288), 100fps (704x576), 100fps (960x576)
- Recording Mode: Continuous, Event Alarm, Motion, Video Loss, Schedule, Manual
- Pre-Alarm: Off, 1, 2, 3, 4, 5, 10, 15 sec.
- Post-Alarm: Off, 1, 2, 3, 4, 5, 10, 15, 30, sec., 1, 2, 3 min.
- Display Resolution: 1920x1080, 1280x1024, 1280x720
- Display Speed: 100 fps
- Display Mode: Full screen, 4
- Auto Switching: 0, 3, 5, 10, 20, 30 sec, Event or manual, Multi Channel Views
- External Backup: USB HDD, USB Memory,Network, FTP
- Watermark: Yes
- Search Mode: Date/Time, Event, Thumbnail
- Privacy zones: 4 per camera
- Motion Detection: On/ Off/ Sensitivity/ Area setting
- Event Source: Motion, Alarm, Text, Video Loss, System
- Event Action: Pop-Up, Relay, E-Mail, Buzzer, PTZ Preset
- Audio Inputs: 4 CH, 3.5mm Jack socket
- Audio Outputs: 1 CH, 3.5mm Jack socket
- Alarm Inputs: 4 contact input N/O or N/C
- Alarm Outputs: 1 Relay
- Network Interface: 1x 10/100 Base T/TX (RJ-45)
- Serial Interface(s): 2 x USB2, 1 x RS485
- Multiplex Function: Triplex
- Video Streaming: Versatile Dual Streaming
- Time Setting: Setting by NTP Server local or internet
- Client software: Windows (XP, Vista, 7), Web Viewer: IE, Firefox, Safari, Chrome; Mobile: iPhone, Android
- Operating Temperature: 0°C ~ +40°C
- Humidity: less than 90%, non condensing
- Supply Voltage: 12 VDC (External Power Supply)
- Certification: FCC,CE
- Power Consumption: 12 W
- Weight: 0.9 kg
- Dimensions w*h*d: 250 x 44 x 175 mm
Grundig GRA D1104B DVR Kayıt Cihazı PDF Dosyası628.66 KB
