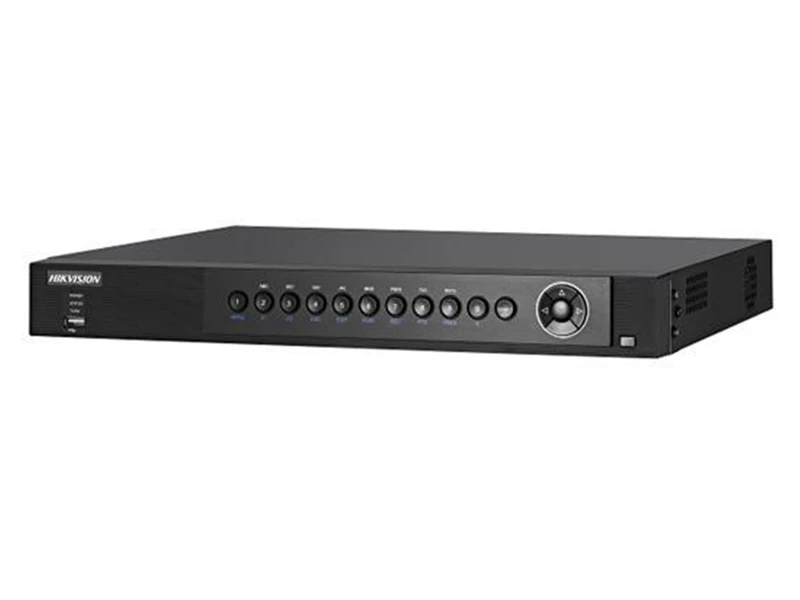

Haikon DS 7204HUHI F1 S Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264+ & Dual-stream video compression
- Support HD-TVI/analog/AHD/IP camera triple hybrid
- Support both HD-TVI and analog cameras with adaptive access
- Full channel@5MP resolution non real-time recording
- HDMI output at up to 4K while VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 4-ch synchronous playback
Teknik Özellikler
| Video/Audio Input | |
| Audio Input: | 4-ch |
| Video Compression: | H.264,H.264+ |
| Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types: | Support HDTVI input: 5MP, 4MP, 3MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
| Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
| Support CVBS input | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | G.711u |
| Audio Input Interface: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
| Video/Audio Output | |
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
| Recording resolution: | Mainstream:5MP/4MP/3Mp/1080p/720p/WD1/4CIF/VGA/CIF |
| Sub-stream:WD1/4CIF/CIF/QVGA/QCIF | |
| Frame Rate: | Main stream: |
| 5MP@10fps/4MP@15fps/3MP@15fps/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
| Sub-stream: | |
| WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N) | |
| Video Bit Rate: | 32 Kbps-10 Mbps |
| Stream Type: | Video/Video&Audio |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Support |
| Playback Resolution: | 5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF |
| Synchronous Playback: | 4-ch |
| Network management | |
| Remote connections: | 128 |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, |
| ONVIF | |
| Hard Disk Driver | |
| Interface Type: | 1 SATA Interface |
| Capacity: | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| USB Interface: | 2 USB 2.0 Interface on the front panel |
Haikon DS 7200HUHI F1 S Turbo HD DVR Kayıt Cihazı Pdf Dosyası678.51 KB
