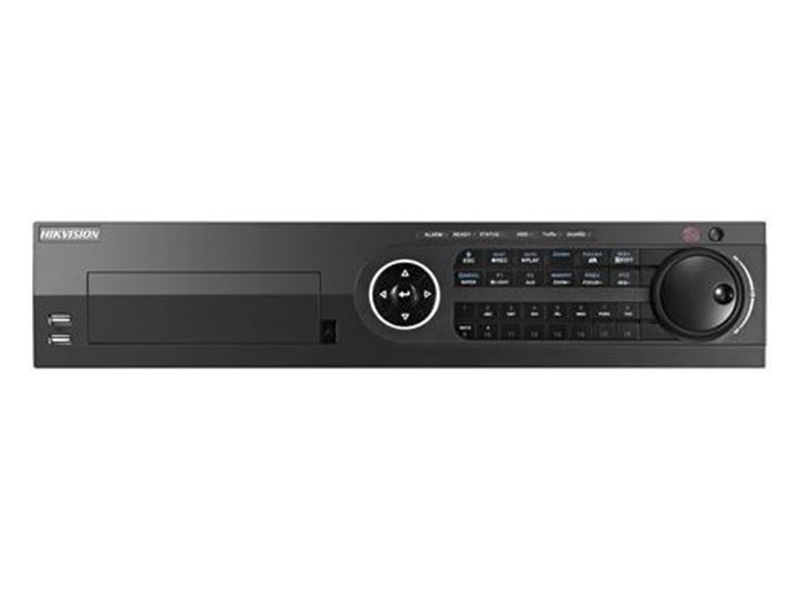

Haikon DS 7304HQHI F4 N Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 ,H.264+& Dual-stream video compression
- Support HD-TVI, IPC,AHD and analog cameras with adaptive access
- Support Cloud storage(One Drive, Google Drive or Drop Box)
- Up to 3 MP resolution
- VGA output at up to 1920×1080P resolution,HDMI output at up to 4K(3840x2160) resolution
- Long transmission distance over coax cable
- Up to 4-ch synchronous playback at 1080p resolution
- playback at up to 256X speed.
- Support POS functions.
Teknik Özellikler
Video/Audio Input | |
Audio Input: | 4-ch |
Video Compression: | H.264,H.264+ |
Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types: | Support HDTVI input: 3MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz |
Note: The 3 MP signal input is only available for the first channel of DS-7304HQHI-F4/N, the first 2 channels of DS-7308HQHI-F4/N, and the first 4 channels of DS-7316HQHI-F4/N. | |
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz | |
support CVBS input | |
Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
Audio Compression: | G.711u |
Audio Input Interface: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video/Audio Output | |
CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; |
When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF | |
Frame Rate: | Main stream: |
When 1080p Lite mode not enabled: | |
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps | |
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
When 1080p Lite mode enabled: | |
3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
Video Bit Rate: | 32 Kbps-6 Mbps |
Stream Type: | Video/Video&Audio |
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
Audio Output: | 1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate: | 64kbps |
Dual Stream: | Support |
Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
Synchronous Playback: | 4-ch |
Network management | |
Remote connections: | 128 |
Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
Hard Disk Driver | |
Interface Type: | 4 SATA Interfaces |
Capacity: | Up to 6 TB capacity for each disk |
External Interface | |
Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
USB Interface: | 2 USB 2.0 Interface on the front panel |
Haikon DS 7304HQHI F4 N Turbo HD DVR Kayıt Cihazı PDF Dosyası727.65 KB
