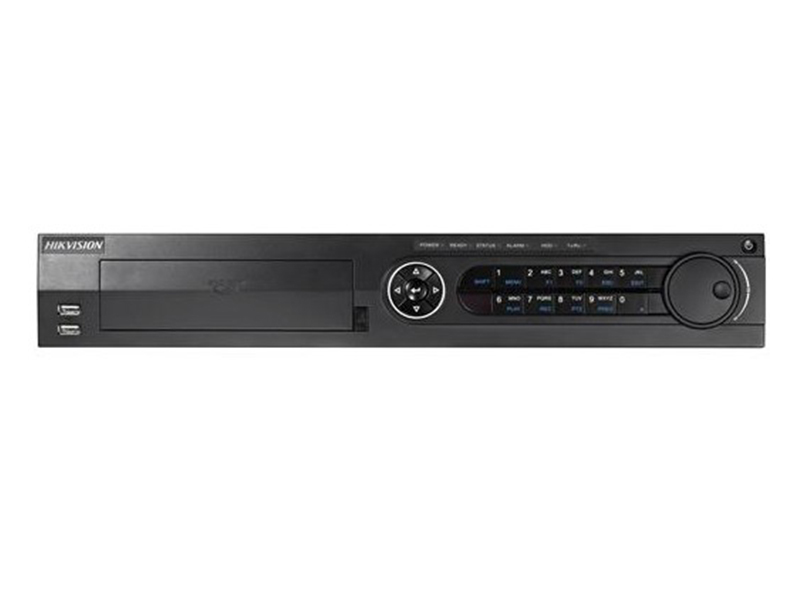

Haikon DS 7304HQHI SH Turbo HD DVR Kayıt Cihazı

Özellikler

H.264 & Dual-stream video compression
Support HD-TVI/analog/IP camera triple hybrid
Support both HD-TVI and analog cameras with adaptive access
Full channel@1080P resolution real-time recording
HDMI and VGA output at up to 1920×1080P resolution
Long transmission distance over coax cable
Support up to 4-ch synchronous playback at 1080P resolution

Teknik Özellikler

Video compression	H.264
Analog and HD-TVI video input	4-ch (up to 6-ch)
	BNC interface (1.0Vp-p, 75 Ω)
Supported camera types	720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, CVBS
IP video input	2-ch
	Up to 2MP resolution
Audio compression	G.711u
Audio input	4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way audio in	1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI / VGA output	1920 × 1080/60 Hz ,1280 × 1024/60 Hz, 1280 × 720/60 Hz,
	1024 × 768/60 Hz
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576,
	NTSC: 704 × 480
Encoding resolution	Main stream: 1080P / 720P / VGA / 4CIF / CIF
	Sub-stream: WD1 (non-real-time)/ 4CIF(non-real-time) / CIF / QCIF /
	QVGA
Frame rate	Main stream: 1/16 fps ~ Real time frame rate
	Sub-stream: 1/16 fps ~ Real time frame rate
Video bitrate	32 Kbps-10 Mbps
Audio output	2-ch, RCA (Linear, 1KΩ, for VGA output and CVBS output respectively)
Audio bitrate	64 Kbps
Dual-stream	Support
Stream type	Video, Video & Audio
Synchronous playback	4-ch
Playback resolution	1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Remote connection	128
Network protocols	TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP,
	SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Type	4 SATA interfaces for 4 HDDs; 1 eSATA interface
Capacity	Up to 4 TB capacity for each disk
Network interface	1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface	RS-232, RS-485, Keyboard
USB port	3 × USB2.0
Alarm in / out	16 / 4
Power supply	100 ~ 240VAC, 47 ~ 63HZ
Consumption	≤ 30W
Working temperature	-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working humidity	10% ~ 90%
Chassis	19-inch rack-mounted 1.5U chassis
Dimensions (W × D × H)	445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch)
Weight	≤5Kg (11.0lb)
