Açıklama

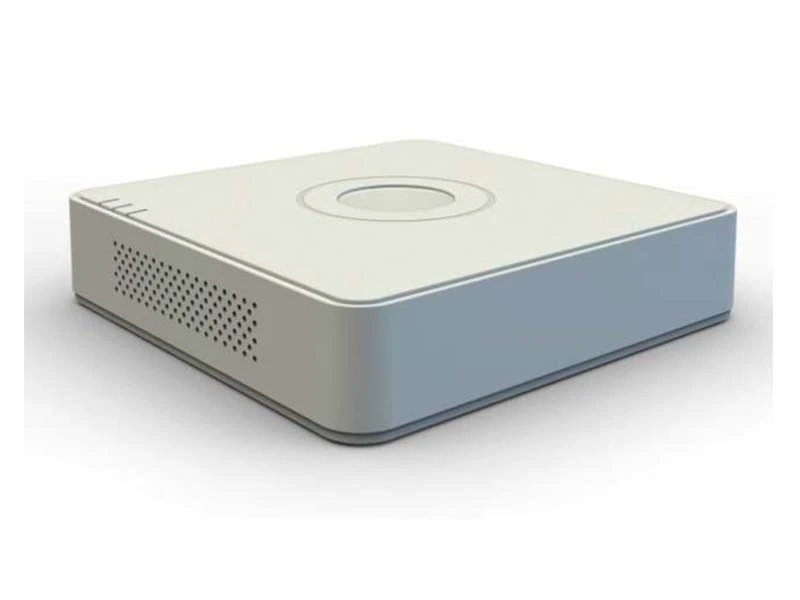

Hikvision DS 7104HGHI SH Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 & Dual-stream video compression
- Support both HD-TVI and analog cameras with adaptive access
- Full channel@720P resolution real-time recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 4/8-ch synchronous playback at 1080P resolution
Teknik Özellikler
| Video/Audio Input | |
| Audio Input | 1-ch |
Video Compression | H.264 |
| Analog and HD-TVI video input | 4-ch BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types | 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | |
| HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution | Main stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
| Frame Rate | Main stream: 1/16 fps ~ Real time frame rate |
| Sub-stream: 1/16 fps ~ Real time frame rate | |
| Video Bit Rate | 32 Kbps-6 Mbps |
| Stream Type | Video/Video&Audio |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Playback Resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Synchronous Playback | 4-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP?, HTTPS |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface | 2 USB 2.0 Interfaces |
| General | |
| Power Supply | 12V DC |
| Consumption | ≤ 15W(without hard disks) |
| Working Temperature: | -10 oC ~+55 oC (14 oF ~ 131 oF) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 200 × 200 × 45mm |
| (7.9 × 7.9 × 1.8 inch) | |
| Weight | ≤ 0.8 kg / 1.8lb(without hard disks) |
Hikvision DS 7104HGHI SH Turbo HD DVR Kayıt Cihazı Pdf Dosyası554.26 KB
