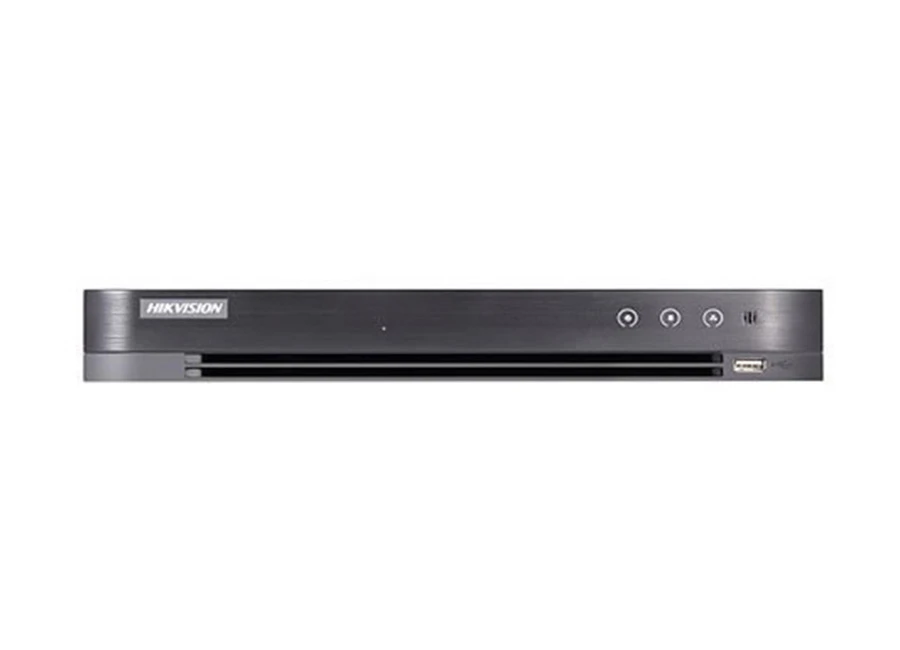

Hikvision DS 7204HQHI K1/B Turbo HD DVR Kayıt Cihazı

Özellikler

Support H.265 Pro+/H.265 Pro/H.265 video compression
Support HDTVI/AHD/CVI/CVBS/IP video input
Max. 6 IP cameras input (up to 6 MP)
Up to 10 TB capacity per HDD

Teknik Özellikler

Video/Audio Input
Audio Input	1-ch
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input	4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types	4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
	Note The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
	Support AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
	Support CVI input 1080p25, 1080p30, 720p25, 720p30
	Support CVBS input
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Audio Compression	G.711u
Audio Input Interface	RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
HDMI/VGA Output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution	When 1080p Lite mode not enabled
	4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
	When 1080p Lite mode enabled
	4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate	Main stream
	When 1080p Lite mode not enabled
	For 4 MP stream access 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps
	(P)/30fps (N)
	For 3 MP stream access 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
	For 1080p stream access 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	For 720p stream access 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	When 1080p Lite mode enabled
	4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate	32 Kbps-6 Mbps
Stream Type	Video/Video&Audio
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output	1-ch RCA(Linear, 1kΩ)
Audio Bit Rate	64kbps
Dual Stream	Support
Synchronous Playback	4-ch
Network management
Remote connections	32
Network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS,ONVIF
Hard Disk Driver
Interface Type	1 SATA Interface
Capacity	Up to 10 TB capacity for each disk
External Interface
Network Interface	1; 10M / 100M self-adaptive Ethernet interface
USB Interface	2 USB 2.0 Interfaces
Serial Interface	1; standard RS-485 serial interface, half-duplex
General
Power Supply	12V DC
Consumption	≤ 6W(without hard disks)
Working Temperature	-10 oC to +55 oC (14 oF to 131 oF)
Working Humidity	10% to 90%
Dimensions	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight	≤ 1.16 kg (2.6 lb)
