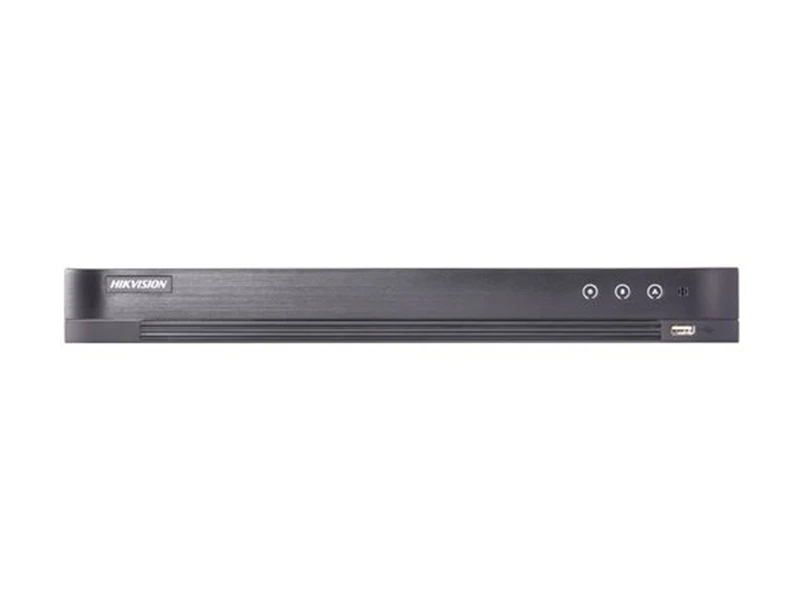

Hikvision iDS 7204HQHI K1/2S Turbo HD DVR Kayıt Cihazı

Özellikler

Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Deep learning-based analysis: re-recognition of the human body or vehicle target in behavior detection to filter false alarm, supports 2-ch detection for iDS-7204HQHI-K1/2S and 4-ch for iDS-7208HQHI-K1/4S
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input

Teknik Özellikler

Video/Audio Input
Audio Input	1-ch
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog Video Input	4-ch
Supported camera types	HDTVI input:
	4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
	Note: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-K1/2S, forchannel 1/2 of iDS-7208HQHI-K1/4S, and for channel 1/2/3/4 of iDS-7216HQHI-K1
	AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
	HDCVI input :1080p25, 1080p30, 720p25, 720p30
	CVBS input: PAL/NTSC
IP Video Input	up to 6-ch
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
IP Video Input Resolution	Up to 6 MP resolution
Audio Compression	G.711u
Audio Input Interface	RCA (2.0 Vp-p, 1 kΩ)
Video/Audio Output
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA Output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution	When 1080p Lite mode not enabled:
	4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
	When 1080p Lite mode enabled:
	4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate	Main stream:
	When 1080p Lite mode not enabled:
	For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps
	(P)/30fps (N)
	For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
	For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	When 1080p Lite mode enabled:
	4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	Sub-stream:
	WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Stream Type	Video/Video&Audio
Audio Output	1-ch RCA(Linear, 1kΩ)
Synchronous Playback	4-ch
Network management
Remote connections	32
Network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk Driver
Interface Type	1 SATA Interface
Capacity	Up to 10 TB capacity for each disk
External Interface
Network Interface	1 RJ45 10M/100M adaptive Ethernet Interface
USB Interface	2 USB 2.0 Interfaces
Serial Interface	1; standard RS-485 serial interface, half-duplex
General
Power Supply	12 VDC
Consumption	≤ 10 W
Working Temperature	-10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working Humidity	10% to 90%
Dimensions	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight	≤ 1.16 kg (2.6 lb)
