Açıklama

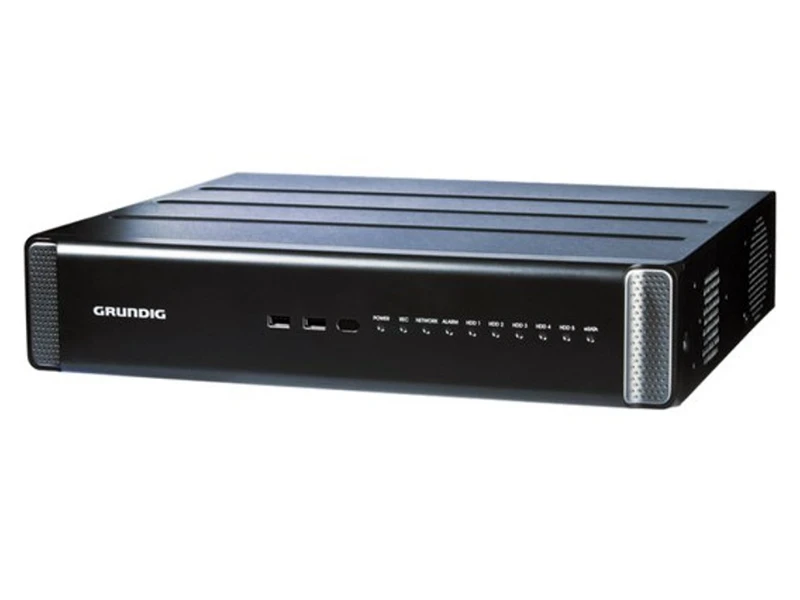

Grundig GRA D2208A DVR Kayıt Cihazı
Özellikler
- 8 Channel video 960H Real-Time recording capability
- Aux Monitor with 8-Split View & Spot Monitors with 4-Split View and editable Sequence Function
- 2 independent Spot Monitors
- Tampering Alarm
- Control over coax for telemetry and camera setup
- Free DDNS service
- Multiplex (Live/Playback, Recording, Backup, Networking)
- USB, Remote & FTP Backup function
- Easy to use user interface
- Compatible to French law of August 2007 for quality in CCTV applications
- 19" mountable and rack adapters included
Teknik Özellikler
- Operating System: Embedded Linux
- Video Inputs: 8 CH Composite, BNC, Looped
- Video Outputs: 3 CVBS BNC (1 Aux, 2 Spots), 1 HDMI, 1 VGA
- Harddisk bay: 5 x SATA II
- Video Compression: H.264
- Recording Resolution: 960H (960x576), 4CIF (704x576), 2CIF (704 x 288), CIF (352x288)
- Recording Speed: 200fps (352x288), 200fps (704x288), 200fps (704x576), 200fps (960x576)
- Recording Mode: Continuous, Event Alarm, Motion, Video Loss, Schedule, Manual
- Pre-Alarm: Off, 1, 2, 3, 4, 5, 10, 15 sec.
- Post-Alarm: Off, 1, 2, 3, 4, 5, 10, 15, 30, sec., 1, 2, 3 min.
- Display Resolution: 1920x1080, 1280x1024, 1280x720
- Display Speed: 200 fps
- Display Mode: Full screen, 4, 6, 8, 9
- PTZ Control: Pan / Tilt / Zoom / Focus / Preset / Sequence / Auto Pan
- Auto Switching: 0, 3, 5, 10, 20, 30 sec, Event or manual, Multi Channel Views
- External Backup: USB HDD, USB Memory,Network, FTP
- Watermark: Yes
- Privacy zones: 4 per camera
- Search Mode: Date/Time, Event, Thumbnail
- Motion Detection: On/ Off/ Sensitivity/ Area setting
- Event Source: Motion, Alarm, Video Loss, System, Tampering
- Event Action: Pop-Up, Relay, E-Mail, Buzzer, PTZ Preset
- Audio Inputs: 8 CH, 3.5mm Jack socket
- Audio Outputs: 4 CH, 3.5mm Jack socket
- Alarm Inputs: 9 contact input N/O or N/C, 1 contact input for reset
- Alarm Outputs: 8 Relay
- Network Interface: 2x 10/100/1000 Base T/TX (RJ-45)
- Serial Interface(s): 1x RS232, 1x RS485, 3x USB, 1x eSATA
- Multiplex Function: Triplex
- Video Streaming: Versatile Dual Streaming
- Time Setting: Setting by NTP Server local or internet
- Client software: Windows (XP, Vista, 7), Web Viewer: IE, Firefox, Safari, Chrome; Mobile: iPhone, Android
- Operating Temperature: 0°C ~ +40°C
- Humidity: less than 90%, non condensing
- Supply Voltage: 110 ~ 240 Vac, 50Hz
- Certification: FCC,CE
- Power Consumption: 21 (without HDD) W
- Weight: 5.2 kg
- Dimensions w*h*d: 430 x 88 x 367 mm
Grundig GRA D2208A DVR Kayıt Cihazı PDF Dosyası162.82 KB
