Açıklama

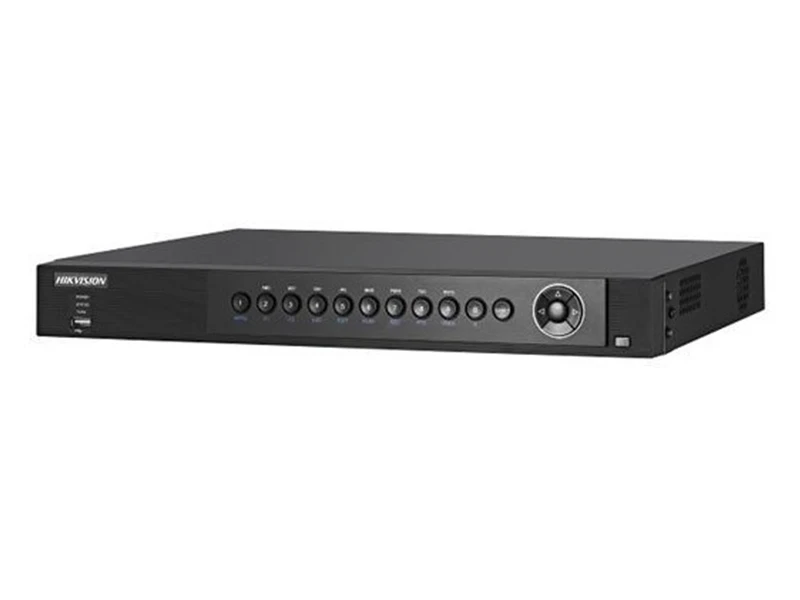

Haikon DS 7208HUHI F1 N Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 ,H.264+& Dual-stream video compression
- Support HD-TVI, IPC,AHD and analog cameras with adaptive access
- Support Cloud storage(One Drive, Google Drive or Drop Box)
- HDMI and VGA output at up to 1920×1080P resolution,HDMI output at up to 4K(3840x2160) resolution
- Long transmission distance over coax cable
- Up to 8-ch synchronous playback at 1080p resolution
- playback at up to 256X speed.
Teknik Özellikler
| Video compression | H.264+/H.264 |
| Video input | 8-ch |
| BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection | |
| Supported HDTVI input | 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz, 3MP, 5MP |
| Supported AHD input | 720p/25Hz, 720p/30Hz |
| CVBS input | Support |
| IP video input | 2-ch |
| Up to 4 MP resolution | |
| Audio compression | G.711u |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| CVBS output | Support |
| HDMI/VGA output | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz |
| HDMI: 1-ch, 4K(3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Encoding resolution | 5MP@12fps/3MP@15fps/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame rate | Main stream: 25fps(P)/30fps(N) |
| Sub-stream:WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCIF (real time) | |
| Video bit rate | 32 Kbps to 10 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit rate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 8-ch |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| SATA | 1 SATA interface |
| Capacity | Up to 6TB capacity |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Network interface | 1, RJ45 10M/100M/1000Mself-adaptive Ethernet interface |
| USB interface | 1 USB 2.0 on the front panel |
| 1 USB 3.0 on the rear panel | |
| Serial interface | 1; RS-485 serial interface, half-duplex |
| Alarm in/out | 8.Nis |
| Power supply | 12 VDC |
| Consumption | ≤ 25W |
| Working temperature | -10 ºC to +55 ºC(14 ºF to 131 ºF) |
| Working humidity | 10% to 90% |
| Dimensions | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight | ≤ 2 kg (4.4 lb) |
Haikon DS 7208HUHI F1 N Turbo HD DVR Kayıt Cihazı PDF Dosyası672.12 KB
