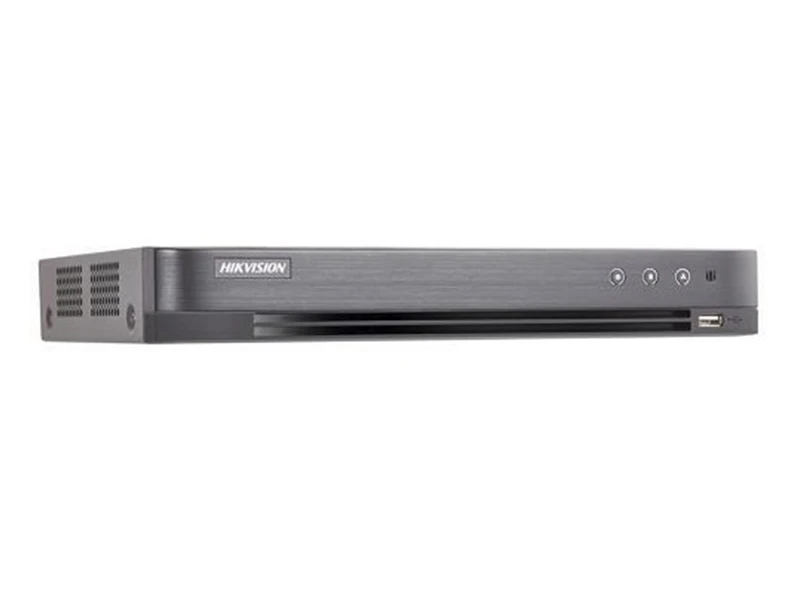

Haikon DS 7208HUHI K1 Turbo HD DVR Kayıt Cihazı
Özellikler
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub stream of analog cameras
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Connectable to H.265+/H.265/H.264+/H.264 IP cameras
- Up to 5 MP resolution for recording
- HDMI output at up to 4K (3840 × 2160) resolution for DS-7208HUHI-K2
- Long distance transmission over UTP and coaxial cable
- 8-ch synchronous playback
Teknik Özellikler
| Video/Audio Input | |
| Audio Input: | 8-ch |
| Video Compression: | H.265+/H.265/H.264+/H.264 |
| Analog and HD-TVI video input: | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types: | Support HDTVI input: 5MP, 4MP, 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
| Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
| Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
| Support CVBS input | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | G.711u |
| Audio Input Interface: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
| Video/Audio Output | |
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
| HDMI/VGA Output: | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Recording resolution: | 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate: | Main stream: |
| 5 MP@12fps/4 MP@15fps/3 MP@18fps | |
| 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
| Sub-stream: | |
| WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Video Bit Rate: | 32 Kbps-10 Mbps |
| Stream Type: | Video/Video&Audio |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Support |
| Playback Resolution: | 5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF |
| Synchronous Playback: | 8-ch |
| Network management | |
| Remote connections: | 128 |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
| Hard Disk Driver | |
| Interface Type: | 1 SATA Interface |
| Capacity: | Up to 8 TB capacity for each disk |
| External Interface | |
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| USB Interface: | 1 USB 2.0 Interface |
Haikon DS 7208HUHI K1 Turbo HD DVR Kayıt Cihazı Pdf Dosyası741.3 KB
